Monitor KDS/GDS Data

Inspection Condition	Inspection Procedure	Reference

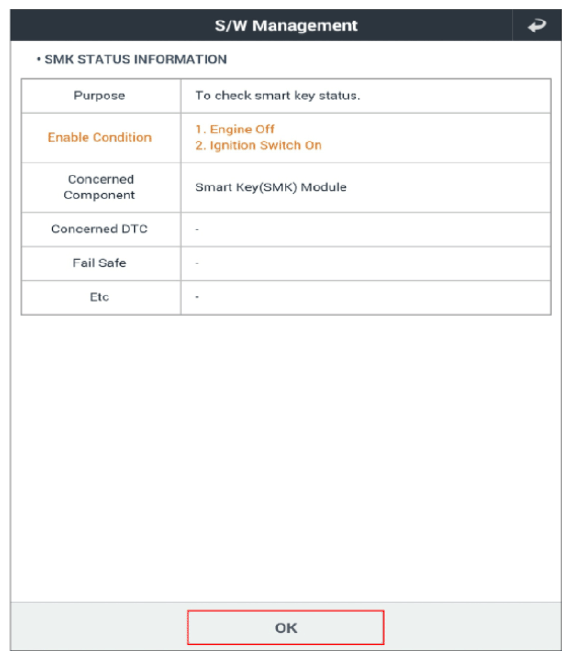

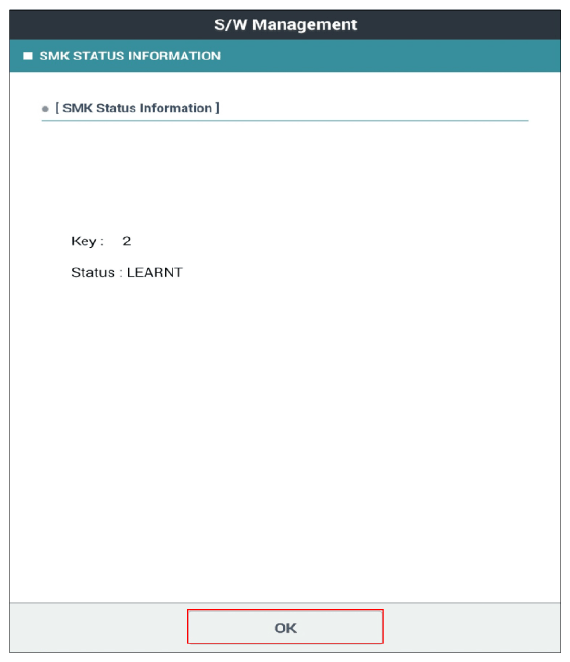

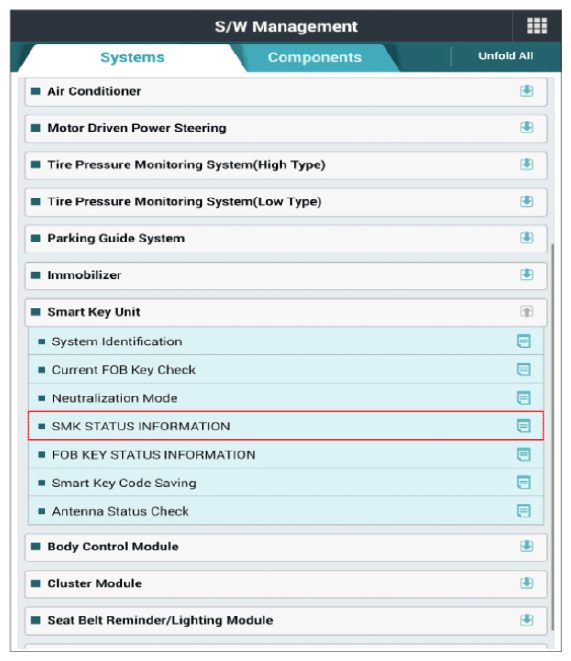

Ignition "ON", engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	3 figures below

G12581055

Courtesy of KIA MOTORS AMERICA, INC.

G12581056

Courtesy of KIA MOTORS AMERICA, INC.

G12581057

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "Wiring Inspection " procedure.
