Components And Components Location: Components: Notes

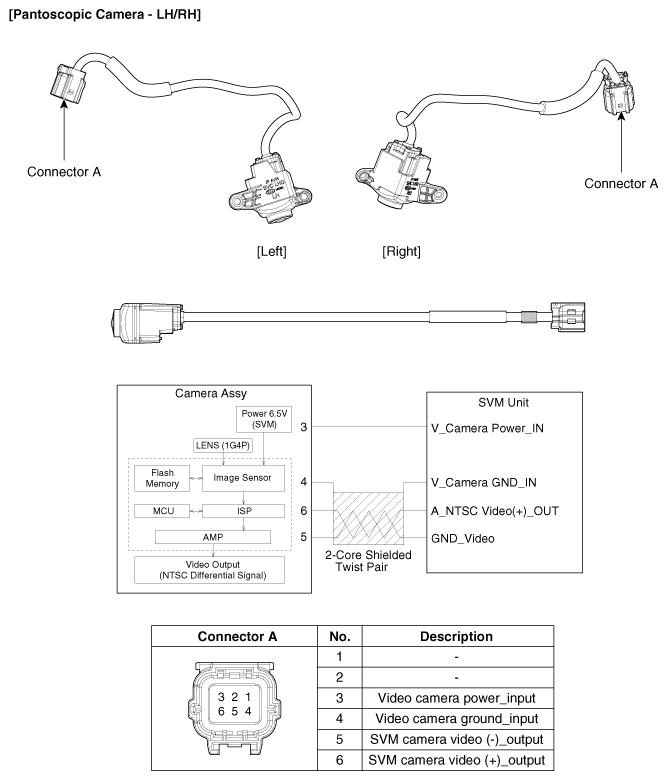

Fig 1: Pantoscopic Camera Circuit Diagram (1 Of 2)
G12144833Courtesy of KIA MOTORS AMERICA, INC.

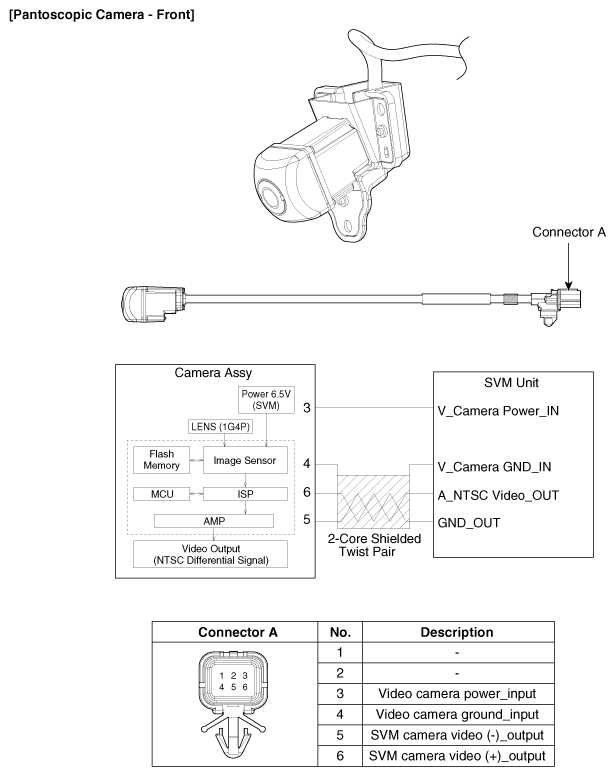

Fig 2: Pantoscopic Camera Circuit Diagram (2 Of 2)
G12144834Courtesy of KIA MOTORS AMERICA, INC.
