Repair Procedures: Disassembly

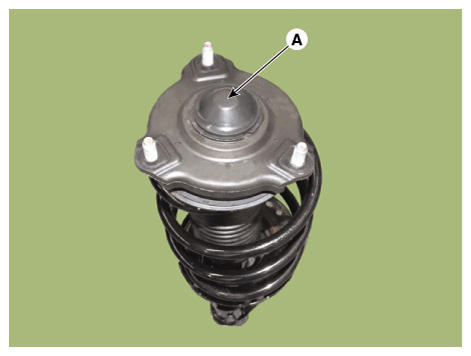

  1. Remove the insulator cap (A).
    G12349740Courtesy of KIA MOTORS AMERICA, INC.

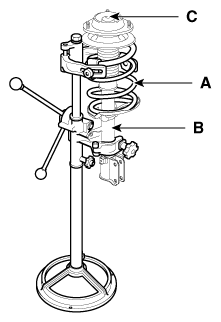

  2. Using a strut spring compressor, compress the coil spring (A).
    NOTE:
    • To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
    • Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.
  3. Remove the self-locking nut (C) from the strut assembly (B).
    G12349741Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
