Harness Connector

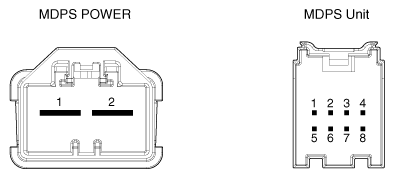

G12349897Courtesy of KIA MOTORS AMERICA, INC.
Item Pin Pin name
MDPS Power 1 Battery +
2 Battery -
MDPS Unit 1 Ignition
7 CAN High
8 CAN Low
