Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse of removal.
[EPB]

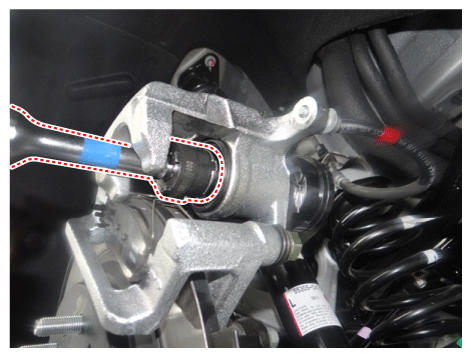

Use a SST (09580-0U000) when installing the brake caliper assembly.

Courtesy of KIA MOTORS AMERICA, INC.
[NON EPB]

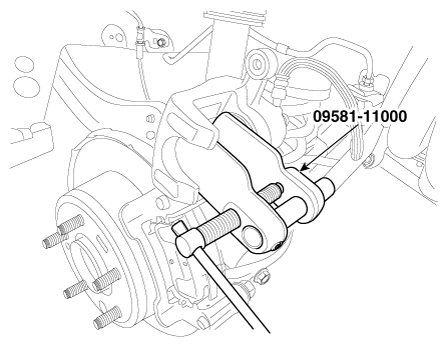

Use a SST (09581-11000) when installing the brake caliper assembly.

Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to Bleeding Of Brake System Brake system bleeding)

CAUTION:

Do not hit piston end by hammer or prying directly against piston face with screwdriver to push in piston.
Use wood or a used pad to protect piston end. Pushing on the wood or used pad is recommended.
When spreading a piston, it is best to use SST 09581-11000 and 09580-0U000.
