Front Brake Disc Runout Check

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

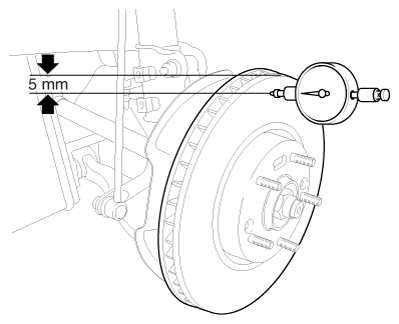

  1. Place a dial gauge about 5mm (0.2 in.) from the outer circumference of the brake disc, and measure the runout of the disc.

    Brake Disc Runout

    Limit: 0.04 mm (0.0016 in.) or less (new one)

    G12357727Courtesy of KIA MOTORS AMERICA, INC.
  2. If the runout of the brake disc exceeds the limit specification, replace the disc, and then measure the runout again.
  3. If the runout does not meet the limit specification, remove the disc, turn it 180° and reinstall. Then check the runout of the brake disc again.
  4. If the runout cannot be corrected by changing the position of the brake disc, replace the brake disc.
