Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake fluid level switch connector, and remove the reservoir cap.
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION: Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

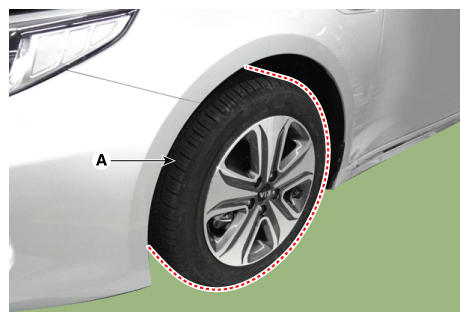

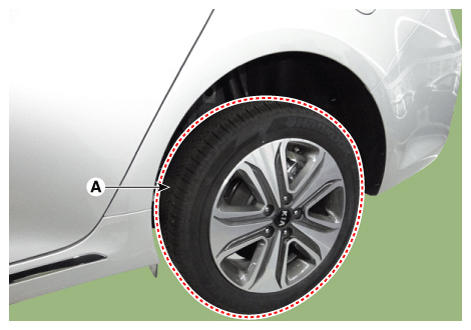

Remove the wheel & tire (A).
[Front]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

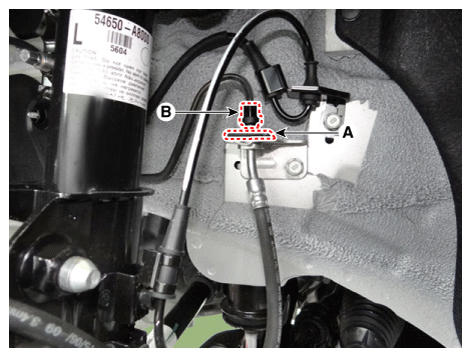

Disconnect the brake tube by loosening the tube flare nut (A).
Remove the brake hose clip (B).
Tightening Torque:

13.7 - 16.6 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.2 lb.ft)

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

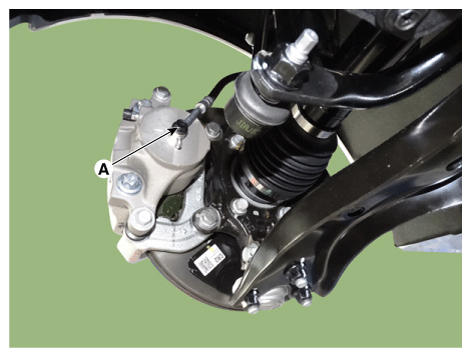

Disconnect the brake hose from the brake caliper by loosening the bolt (A).
Tightening Torque:

24.5 - 29.1 N.m (2.5 - 3.0 kgf.m, 18.0 - 21.6 lb.ft)

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.
