Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the smart key unit.

    (Refer to Smart Key System - "SMART KEY UNIT ")

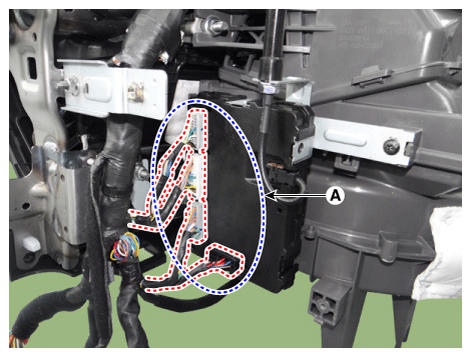

  3. Disconnect the body control module connectors (A).
    G12351258Courtesy of KIA MOTORS AMERICA, INC.

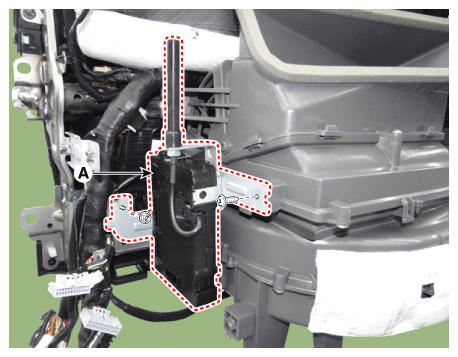

  4. Remove the body control module (A) after loosening the mounting nut and screw.
G12351259Courtesy of KIA MOTORS AMERICA, INC.
