Front Gravity Side Impact Sensor (G-SIS)
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.
- Remove the door scuff trim.
(Refer to Body (Interior and Exterior) - "INTERIOR TRIM ")
- Remove the center pillar trim.
(Refer to Body (Interior and Exterior) - "INTERIOR TRIM ")

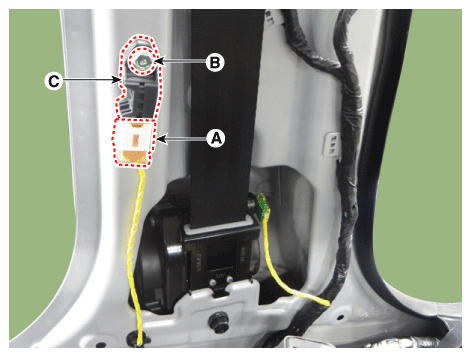

- Remove the front Gravity side impact sensor (A).
- loosen the front Gravity side impact sensor nut (B), and remove the sensor (C).
Tightening Torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb.ft)
