Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Ignition from the vehicle.
  2. Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
  3. Remove the floor console.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

  4. Disconnect the Supplemental Restraint System Control Module (SRSCM) connector (A).

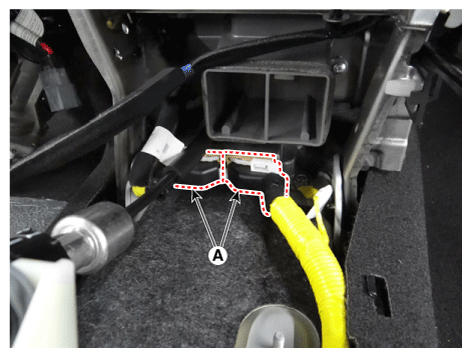

    G12350054Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the bolt (A) and nuts (B) and then remove the Supplemental Restraint System Control Module (SRSCM).

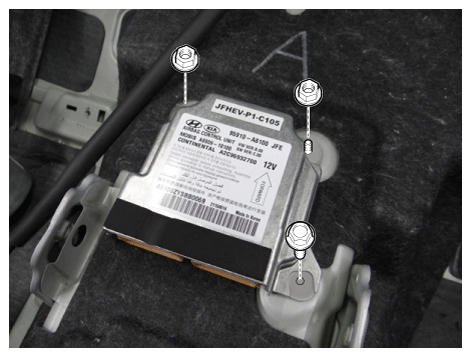

    G12350055Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: You must remove or install SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
