Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
  2. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

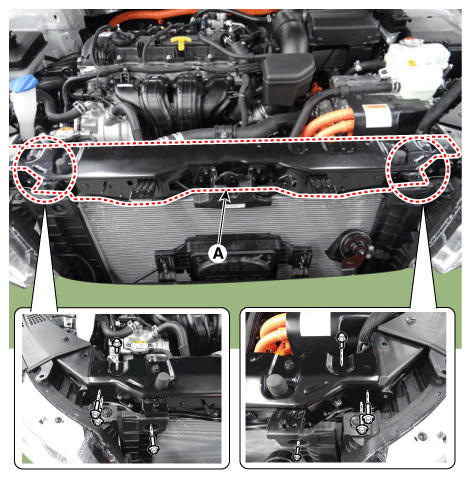

  3. Separate the radiator support upper member (A) after loosening the bolts.
    G12350072Courtesy of KIA MOTORS AMERICA, INC.

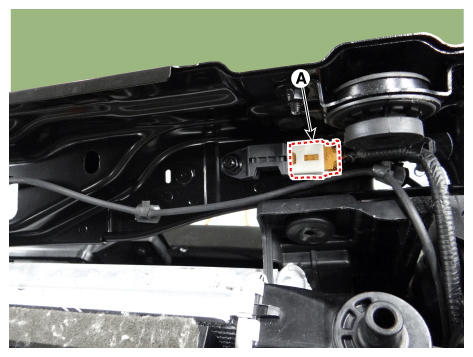

  4. Disconnect the front impact sensor connector (A).
    G12350073Courtesy of KIA MOTORS AMERICA, INC.

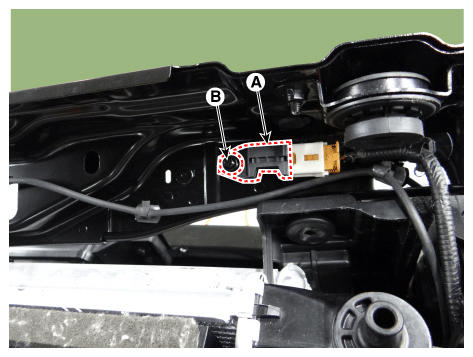

  5. loosen the Front impact sensor mounting nut (B), and remove the sensor (A).
G12350074Courtesy of KIA MOTORS AMERICA, INC.
