Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Open the trunk, remove the right luggage side trim
(Refer to Body - "TRUNK TRIM ")

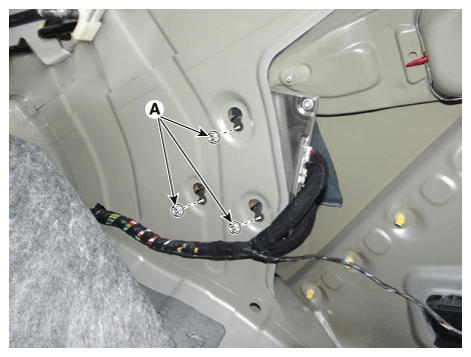

- Loosen the external amplifier mounting nuts (A).

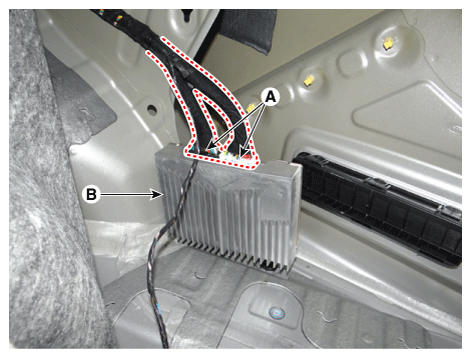

- Disconnect the connector (A) and then remove the external amplifier (B).
