Circuit Diagram

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

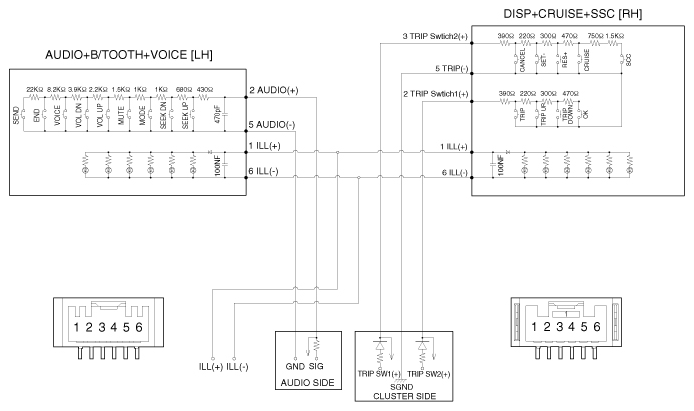

Fig 1: AVN Remote Control Circuit Diagram With Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

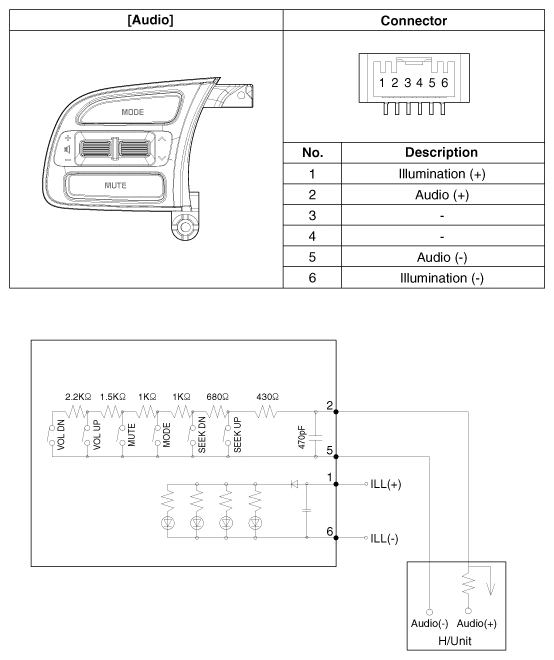

Fig 2: Audio Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

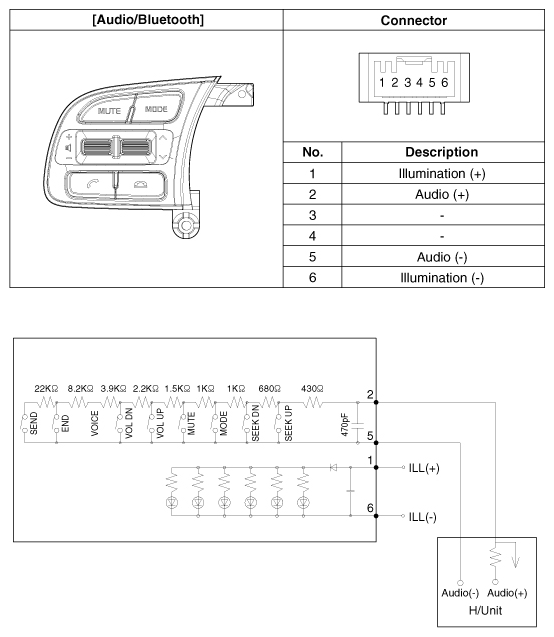

Fig 3: Audio/Bluetooth Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

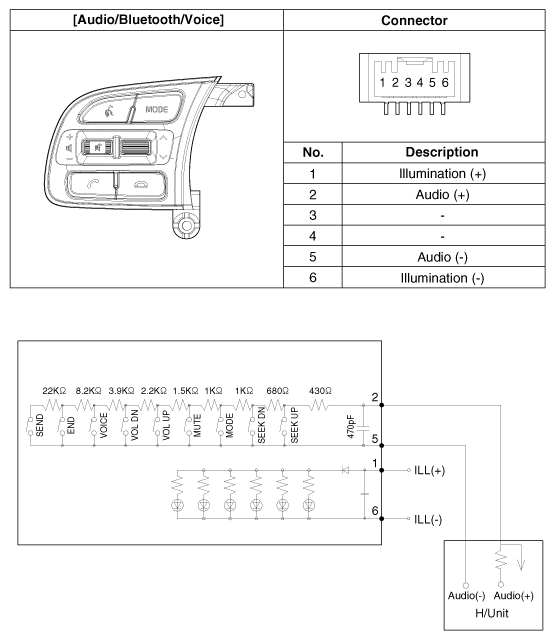

Fig 4: Audio/Bluetooth/Voice Remote Control, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

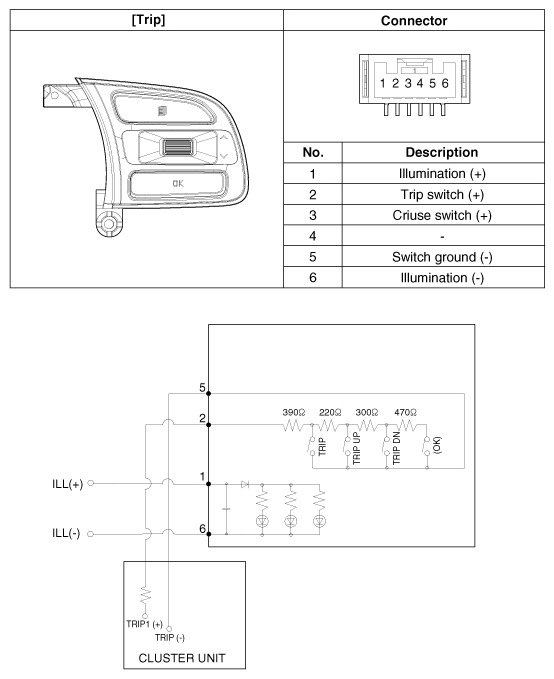

Fig 5: Trip Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

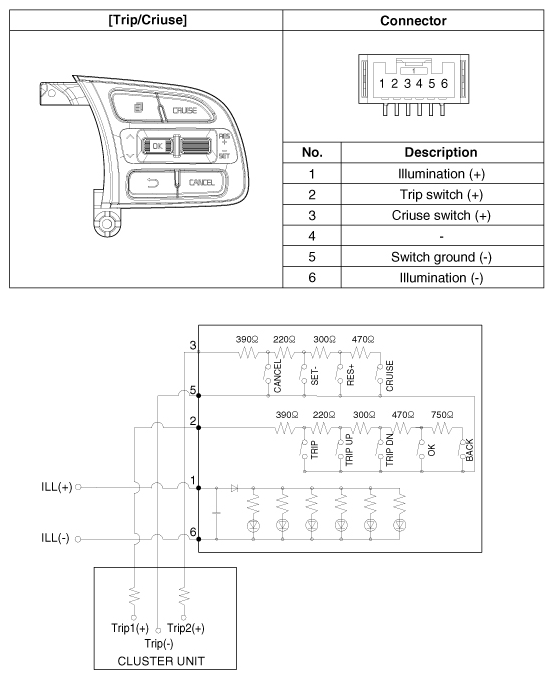

Fig 6: Trip/Cruise Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

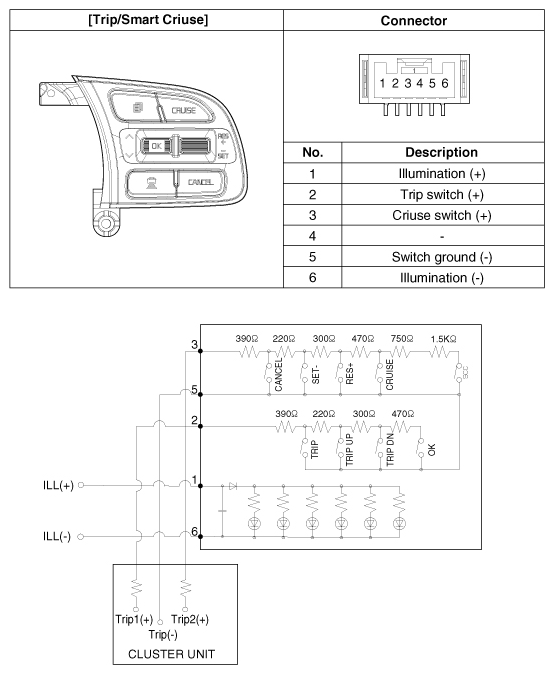

Fig 7: Trip/Smart Cruise Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

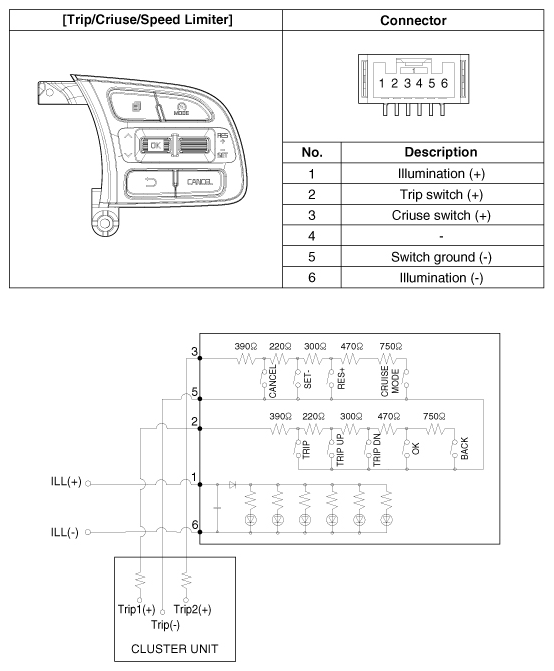

Fig 8: Trip/Cruise/Speed Limiter Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.

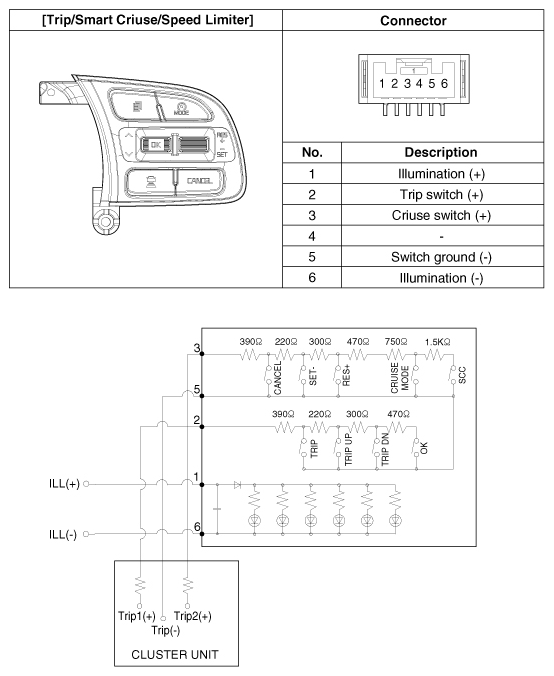

Fig 9: Trip/Smart Cruise/Speed Limiter Remote Control With Circuit Diagram, Connector End View & Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.
