Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

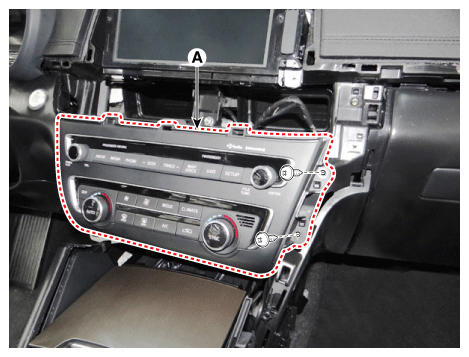

  2. Remove the center fascia lower panel (A) after loosening the mounting screws.

    (Refer to Body - "CENTER FASCIA PANEL ")

    G12351166Courtesy of KIA MOTORS AMERICA, INC.

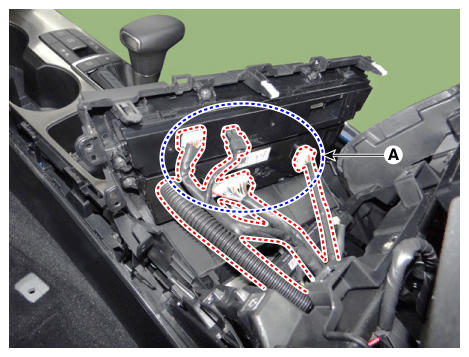

  3. Remove the center fascia lower panel after disconnecting the connectors (A).
    G12351167Courtesy of KIA MOTORS AMERICA, INC.

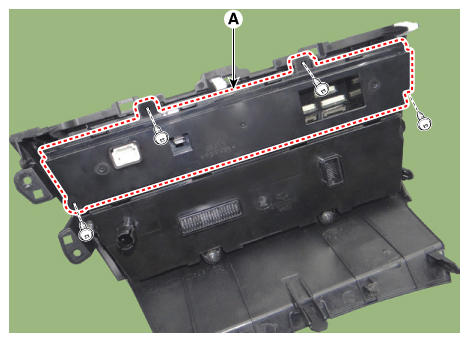

  4. Remove the AVN keyboard unit (A) after loosening the mounting screws.
G12351168Courtesy of KIA MOTORS AMERICA, INC.
