Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to scratch the center fascia upper panel and related parts.
  • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
  • Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia upper panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

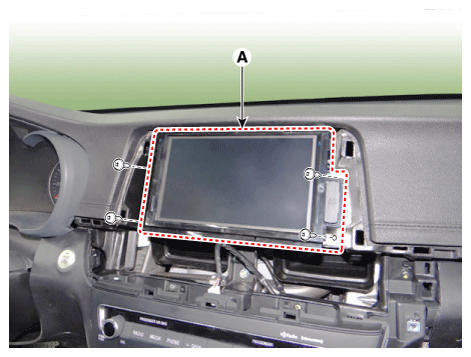

  3. Remove the AVN head unit (A) after loosening the mounting screws.
    G12351160Courtesy of KIA MOTORS AMERICA, INC.

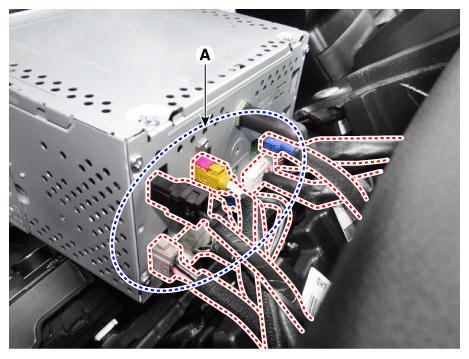

  4. Remove the AVN head unit after disconnecting the connectors and antenna cable (A).
G12351161Courtesy of KIA MOTORS AMERICA, INC.
