Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering column upper and lower shrouds after loosening the screws.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

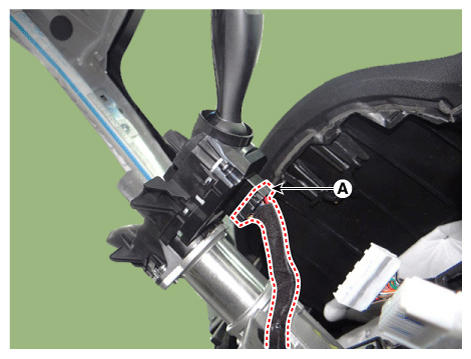

  5. Disconnect the multifunction switch connector (A).
    G12351971Courtesy of KIA MOTORS AMERICA, INC.

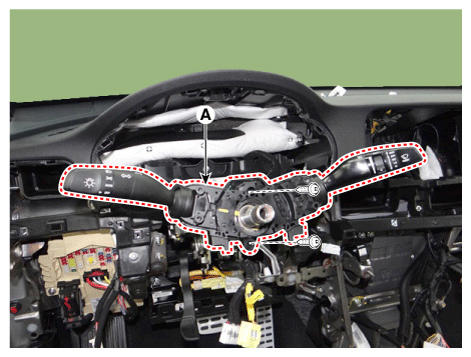

  6. Remove the multifunction switch assembly (A) after loosening the screws.
G12351972Courtesy of KIA MOTORS AMERICA, INC.
