Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the connector from the wiper motor.

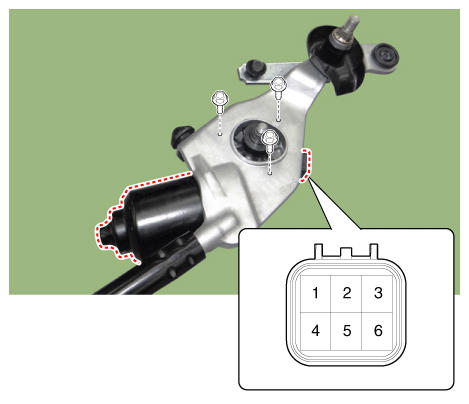

Fig 1: Front Wiper Motor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

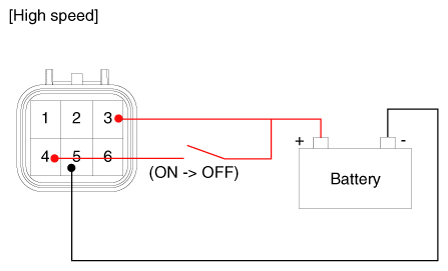

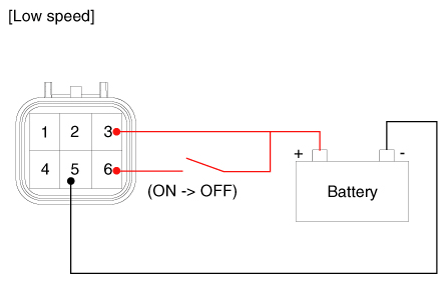

Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5.

FRONT WIPER MOTOR TERMINAL DESCRIPTION

No.	Description
1	-
2	-
3	battery
4	High speed
5	GND
6	Low speed

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
