Bulb Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

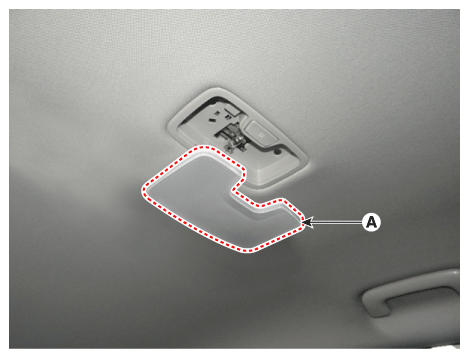

  1. Using a screwdriver or remover, separate the room lamp lens (A) from the room lamp.
    G12351612

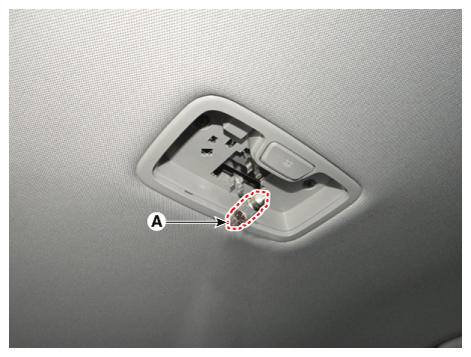

  2. Disconnect the room lamp bulb (A).
G12351613
