Stop/Tail lamp

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear combination lamp.

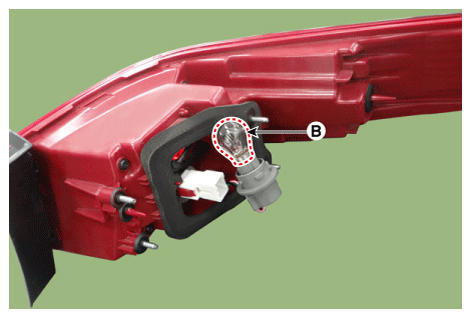

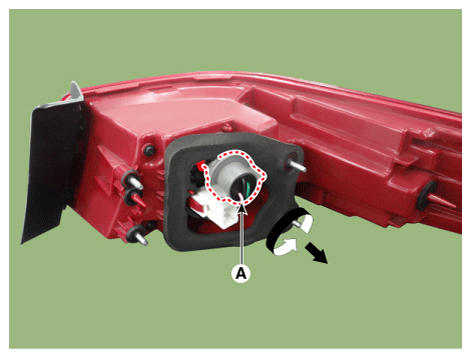

  2. Remove the stop/tail lamp bulb (B) by turning the socket (A) counterclockwise.
G12351647
G12351648
