Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear package tray trim.

    (Refer to Body - "REAR PACKAGE TRAY TRIM ")

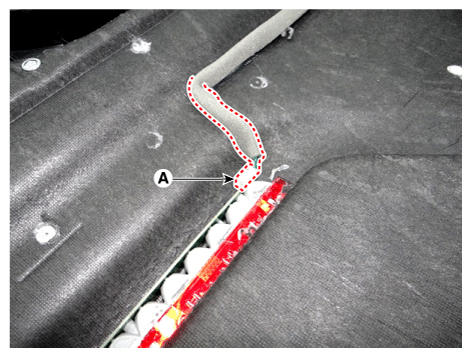

  3. Disconnect the high mounted stop lamp connector (A).
    G12351642

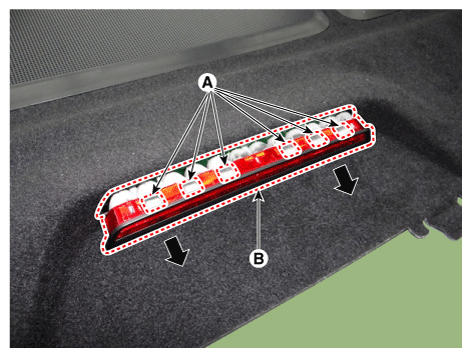

  4. Remove the high mounted stop lamp (B) after pressing the mounting clips (A).
G12351643
