Bulb (high/low)

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp.
  2. Remove the dust caps (A) from the headlamp assembly after turning in the counterclockwise direction.

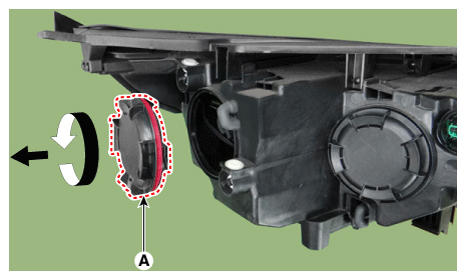

    [Low]

    G12351583

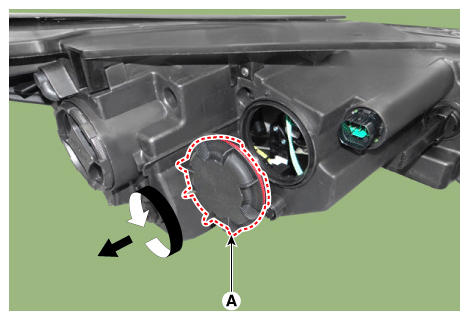

    [High]

    G12351584

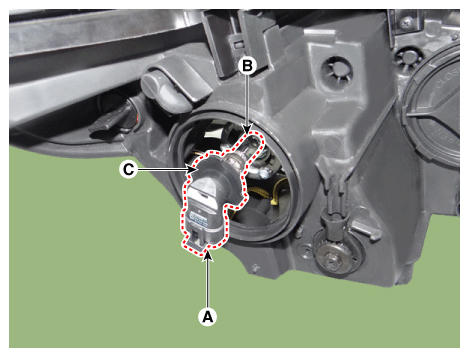

  3. Disconnect the headlamp low beam bulb connector (A).
  4. Remove the headlamp low beam bulb (B) after removing the socket (C) from the headlamp assembly.
    G12351585

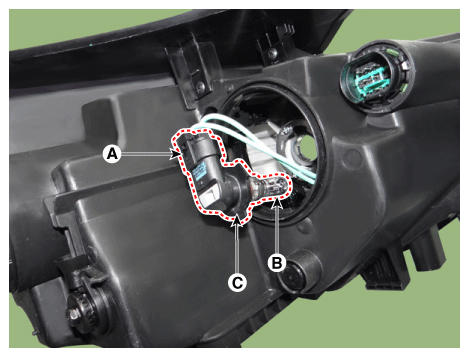

  5. Disconnect the headlamp high beam bulb connector (A).
  6. Remove the headlamp high beam bulb (B) after removing the socket (C) from the headlamp assembly.
    G12351586
  7. Install in the reverse order of removal.
