Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

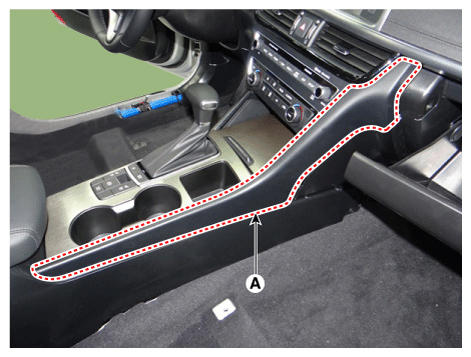

  2. Using a screwdriver or remover, remove the floor console garnish (A).
    G12351627

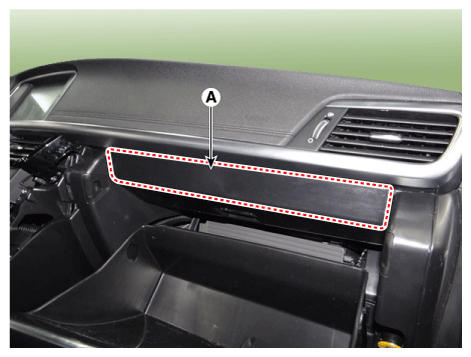

  3. Using a screwdriver or remover, remove the glove box cap (A).
    G12351628

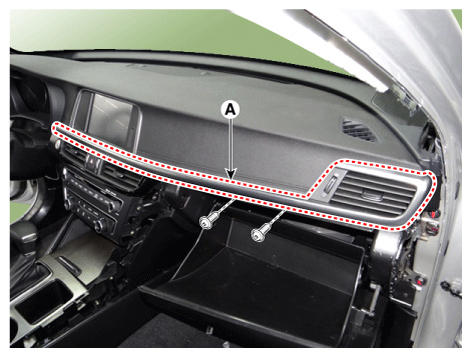

  4. Remove the crash pad garnish [RH] (A) after loosening the screws.
    G12351629

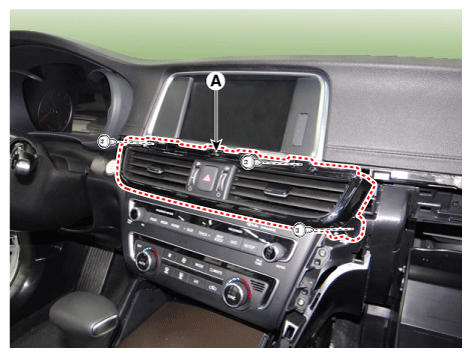

  5. Remove the center fascia panel (A) after loosening the screws.
    G12351630

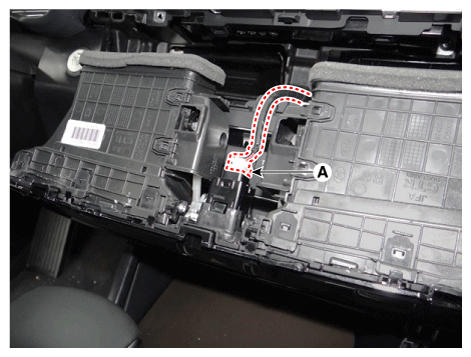

  6. Disconnect the hazard lamp switch connector (A).
    G12351631

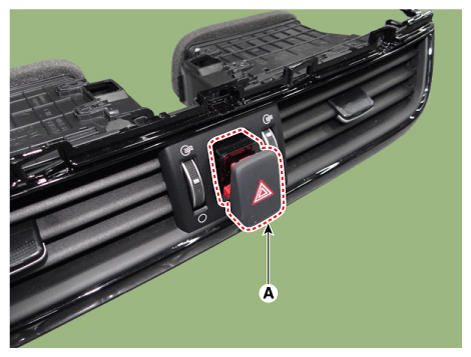

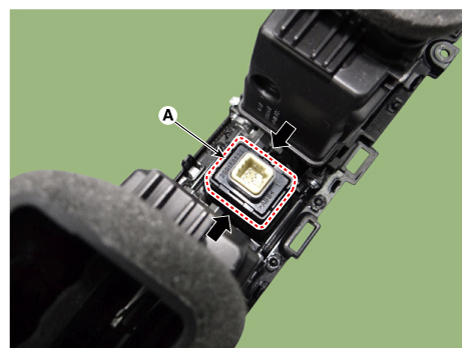

  7. Remove the hazard lamp switch (A) by pressing the locking pin.
G12351632
G12351633
