Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

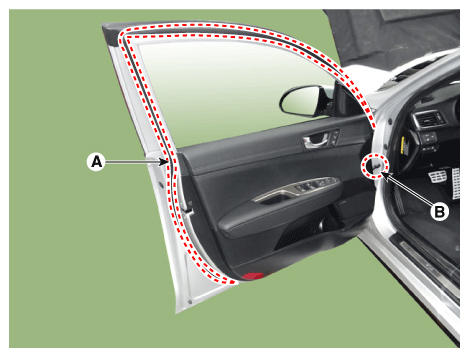

- Loosen the front door checker (B) mounting bolt.
- Detach the clips, then remove the front door side weatherstrip (A).
Tightening Torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
Replace any damaged clips.
