Section 12 (Hybrid Motor Control System (PHEV))
>>
Resolver Sensor
>>
Circuit Diagram
>>
Resolver Sensor (HSG)
Resolver Sensor (HSG)
WARNING:
This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

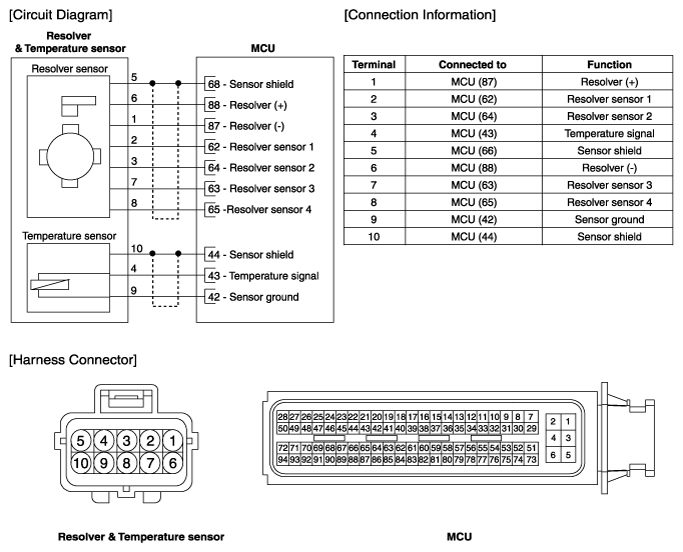

Fig 1: Resolver Sensor (HSG) Circuit Diagram With Connector End View & Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
