Monitor DTC Status
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
- Connect KDS/GDS to Data Link Connector(DLC).
- Ignition "ON".

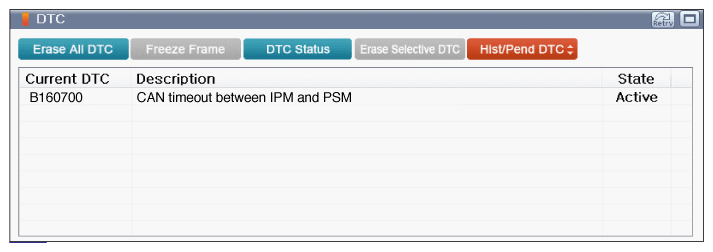

- Monitor "Diagnostic Trouble Codes(DTC)" with KDS/GDS.
- Is DTC status displayed as Present?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in "PSM"'s connector or was repaired and "BCM" memory was not cleared after repair.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
