Repair Procedures: Installation

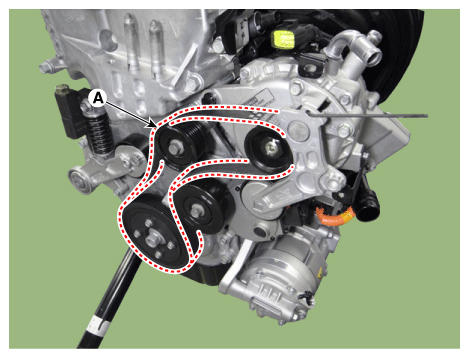

1. Install the drive belt (A).

   Courtesy of KIA MOTORS AMERICA, INC.

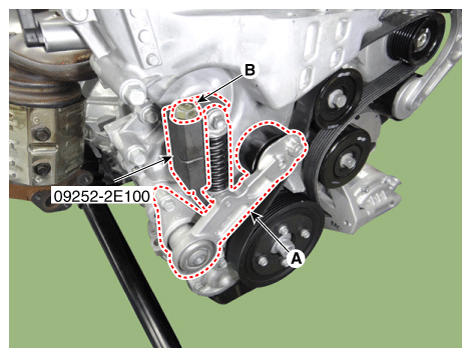

2. Remove the SST (09252-2E100) from the hydraulic tensioner (A) by loosening the adjusting bolt (B).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: To prevent damage the hydraulic tensioner, slowly must work by using the hand tool.

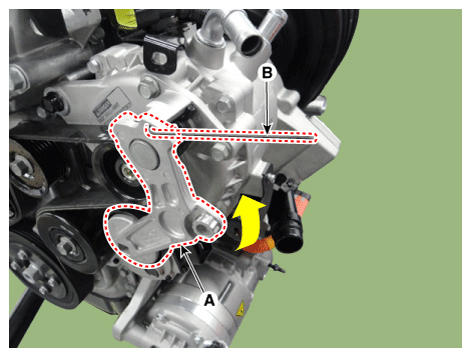

3. Using the wrench, slightly lift the mechanical tensioner (A) and then remove the stopper pin (B). Slowly place the mechanical tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
