Removal And Installation

Disconnect the negative battery terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")

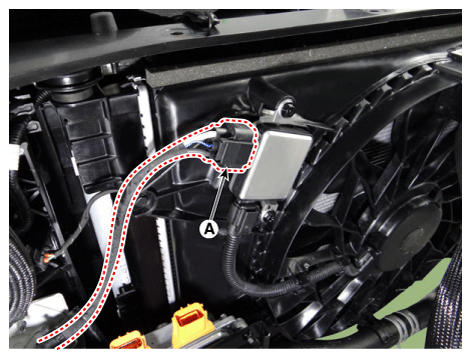

Disconnect the cooling fan control module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

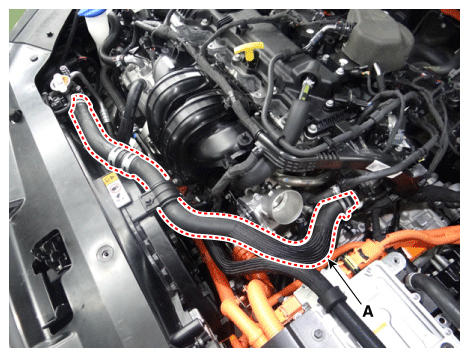

Disconnect the radiator upper hose (A) from the radiator.

Courtesy of KIA MOTORS AMERICA, INC.

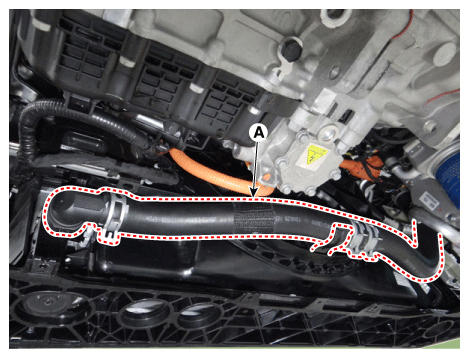

Disconnect the radiator lower hose (A) from the radiator.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper cover.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER COVER ")
Remove the RH headlamp.
(Refer to Body Electrical System - "HEADLAMPS ")

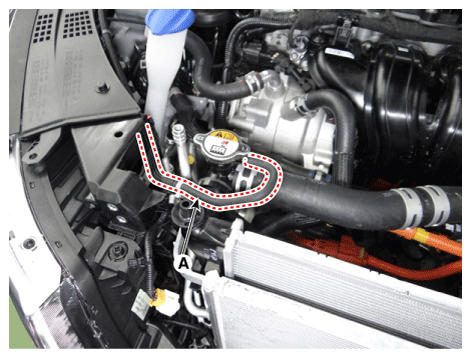

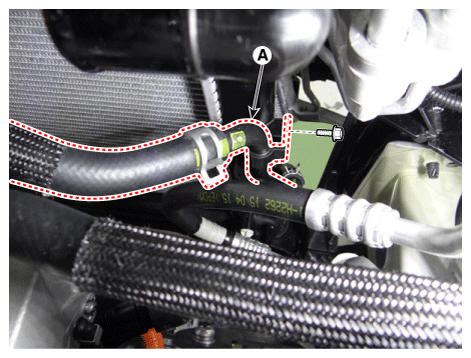

Disconnect the radiator reservoir hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

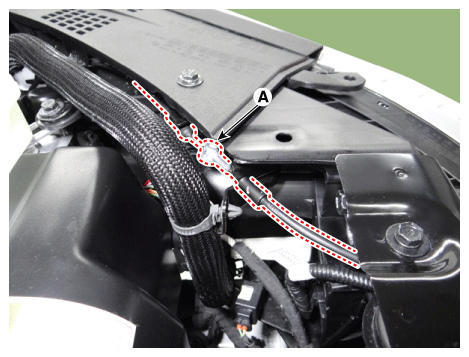

Disconnect the hood latch release handle cable (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the hood switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

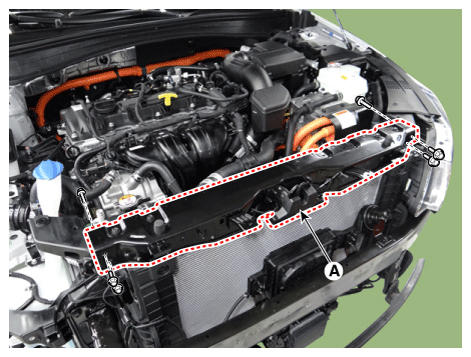

Remove the radiator support upper member assembly (A).
Tightening Torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

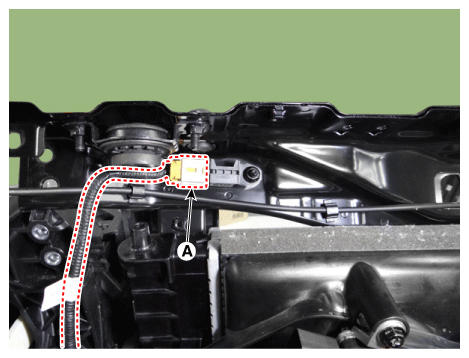

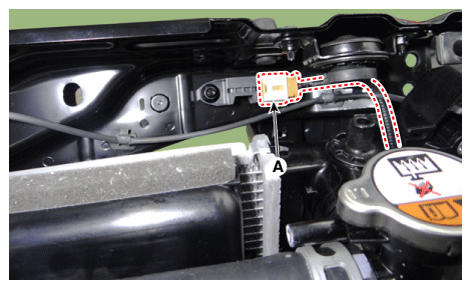

Disconnect the front impact sensor (FIS) connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

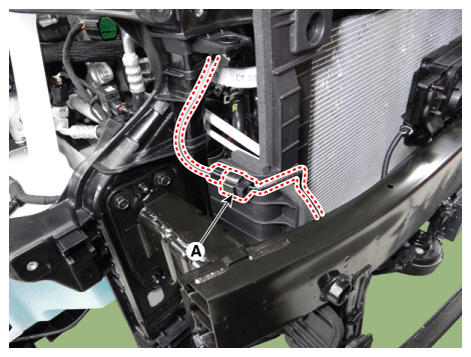

Separate the hybrid starter generator (HSG) water pipe (A).
Tightening Torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

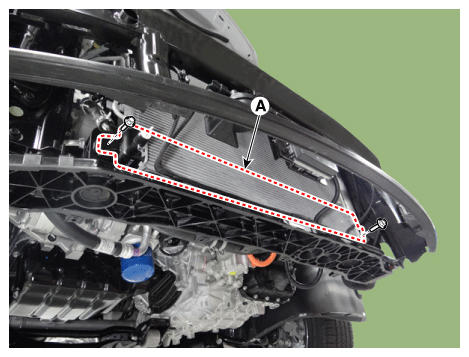

Separate inverter radiator (A) from the radiator.
Tightening Torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

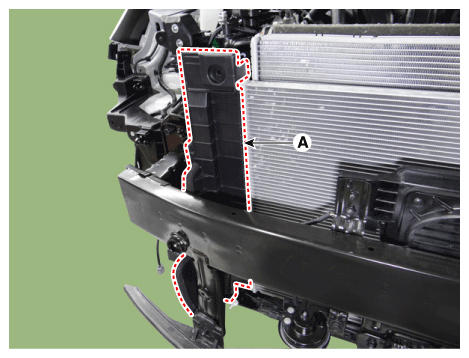

Remove the RH air guard (A).

Courtesy of KIA MOTORS AMERICA, INC.

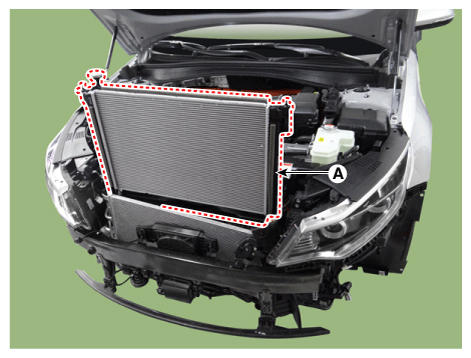

Separate the condenser from the radiator (A) and then pull the radiator (A) upward to remove it from engine room.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH air guard (A).

Courtesy of KIA MOTORS AMERICA, INC.

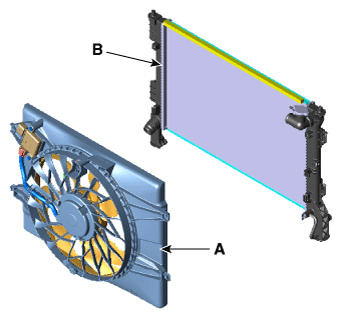

Remove the cooling fan assembly (A) from the radiator (B).
Tightening Torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant and check for leaks.
