Repair Procedures: Removal

CAUTION: Handling wireless charging system parts by wet hands may cause electric shock.
  1. Disconnect the negative (-) battery terminal.

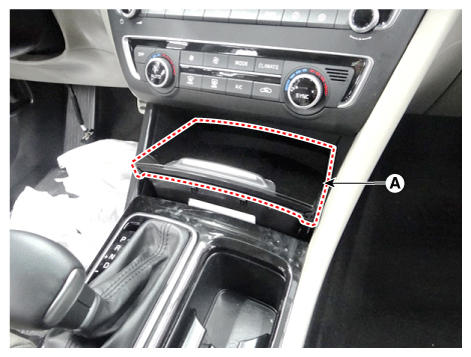

  2. Remove the floor console tray (A).

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

    G12352017Courtesy of KIA MOTORS AMERICA, INC.

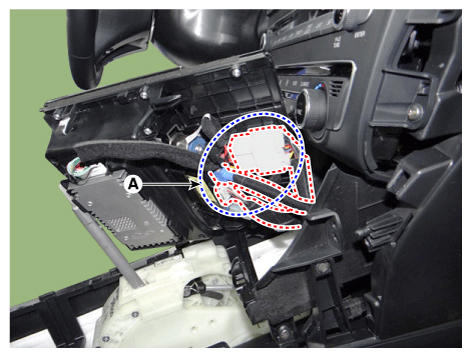

  3. Disconnect the connectors (A) from the floor console tray.
    G12352018Courtesy of KIA MOTORS AMERICA, INC.

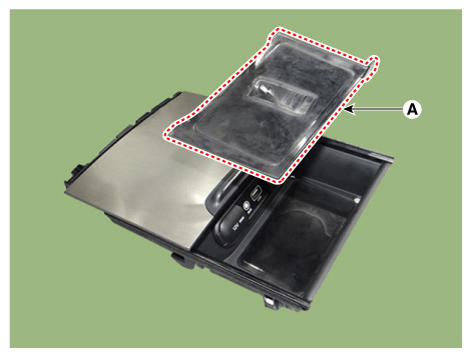

  4. Remove the wireless charging pad (A).
    G12352019Courtesy of KIA MOTORS AMERICA, INC.

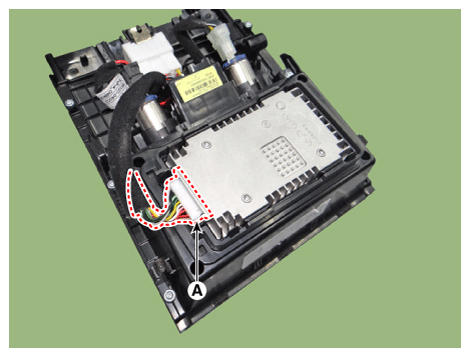

  5. Disconnect the wireless power charging unit connector (A).
    G12352020Courtesy of KIA MOTORS AMERICA, INC.

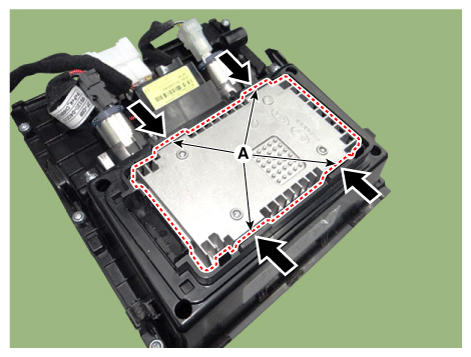

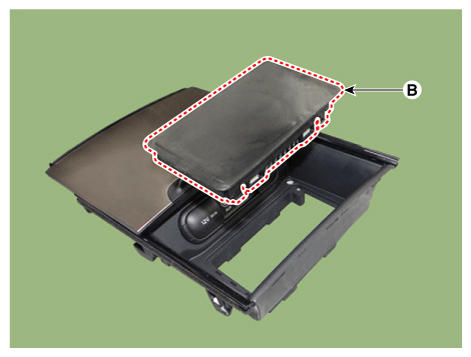

  6. Remove the wireless power charging unit (B) by pressing the fixing hooks (A).
    CAUTION: Be careful not to damage the fixing hooks.
    G12352021Courtesy of KIA MOTORS AMERICA, INC.
    G12352022Courtesy of KIA MOTORS AMERICA, INC.
