Auto Detected Configuration Reset (ESP (ESC) Only)
- Ignition "OFF".
- Connect KDS/GDS to Data Link Connector (DLC).
- Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)

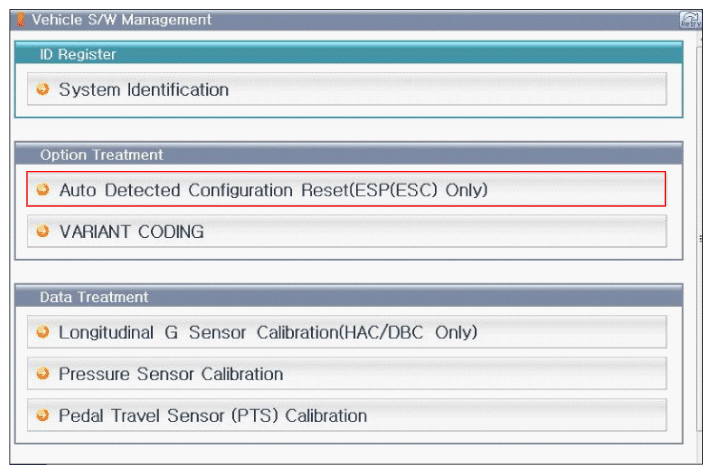

- Select "Vehicle S/W management" on KDS/GDS.

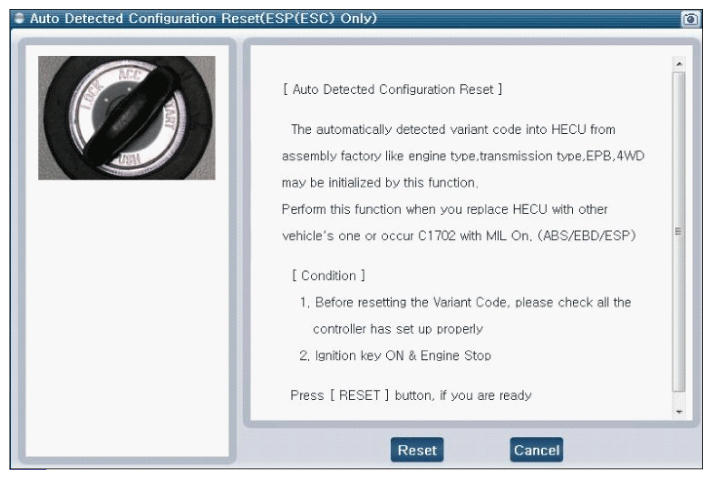

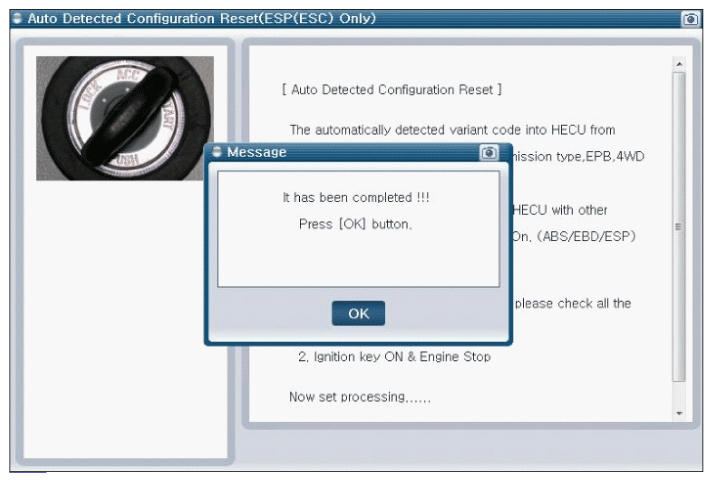

- Perform "AUTO DETECTED CONFIGURATION RESET (ESP (ESC) ONLY) " in "Vehicle S/W management" with KDS/GDS.
* Before performing the variant coding function, inspect for fault on PCM and other control modules that might be able to cause the fault. Repair or replace as necessary and then perform "Variant Coding" with KDS/GDS.
* Before performing the variant coding function, make note of applied system on vehicle for correct data input.
- Ignition "OFF".
- Connect KDS/GDS to Data Link Connector (DLC).
- Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)
- Monitor "Diagnostic Trouble Codes (DTC) " with KDS/GDS.
- Clear any DTCs stored in the system with KDS/GDS.
- Re-check DTC in the system with KDS/GDS.
- Is the same DTC stored in the system?
YES
- Carefully re-do this troubleshooting guide steps.
- Make sure no fault is present on PCM and other control modules.
- If no problems were found with the circuits or connectors, replace IBAU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault might be caused by incorrect variant coding or IBAU has been repaired/replaced and variant coding has not been performed. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
