Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

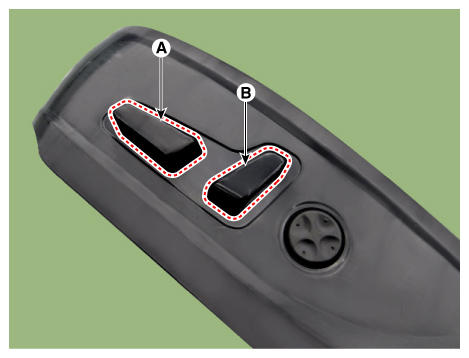

  3. Remove the slide knob (A) and height knob (B).
    G12351822Courtesy of KIA MOTORS AMERICA, INC.

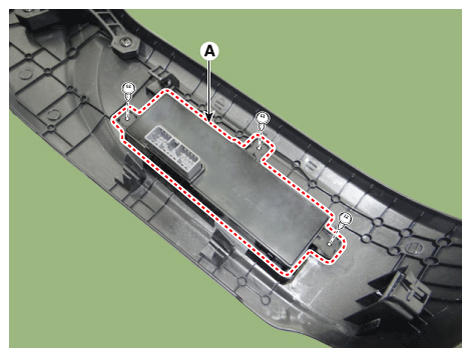

  4. Remove the power seat control switch (A) after loosening the screws.
G12351823Courtesy of KIA MOTORS AMERICA, INC.
