[Manual Seat Control Switch]

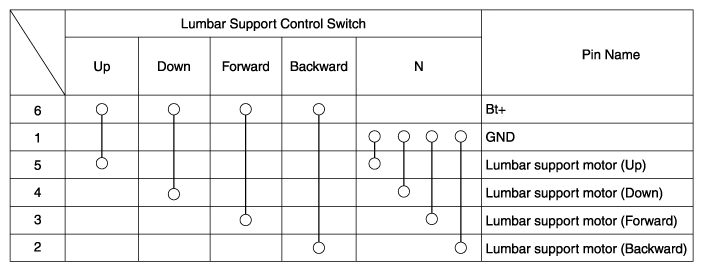

G12351819Courtesy of KIA MOTORS AMERICA, INC.

[Power Seat Control Switch]

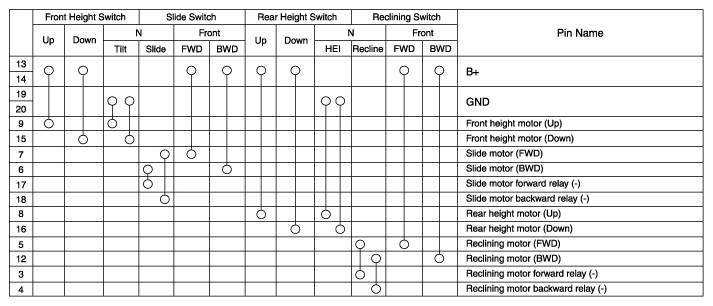

G12351820Courtesy of KIA MOTORS AMERICA, INC.

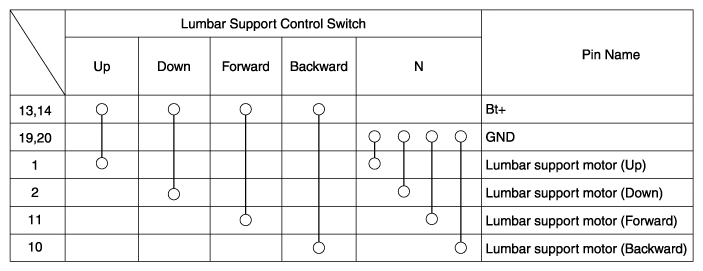

G12351821Courtesy of KIA MOTORS AMERICA, INC.
