Repair Procedures: Removal

Shift the gear to "N".
Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

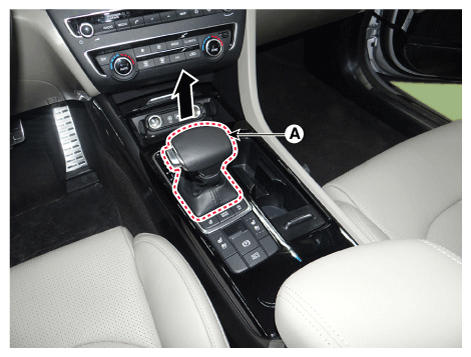

Fig 1: Removing Knob & Boots
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")
Disconnect the main connector (A).

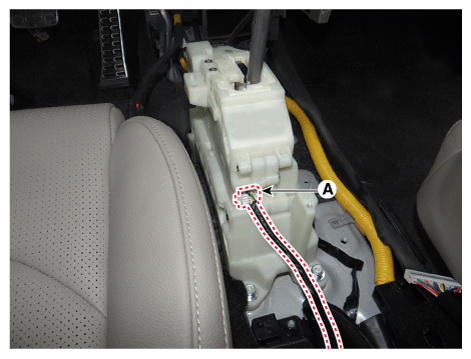

Fig 2: Disconnecting Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable after separating the snap pin (A).

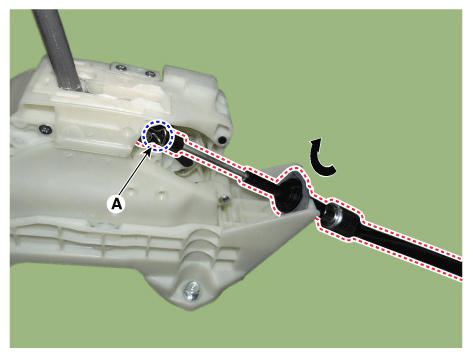

Fig 3: Removing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

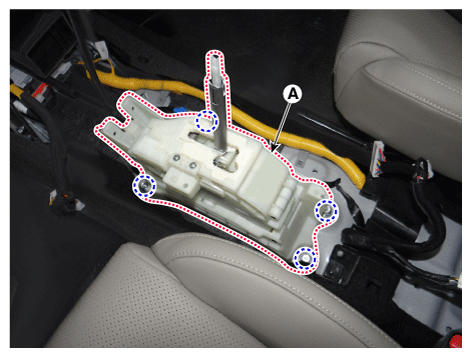

Fig 4: Removing Shift Lever Assembly
