Trunk Lock Module Inspection

Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")
Disconnect the connector from the actuator

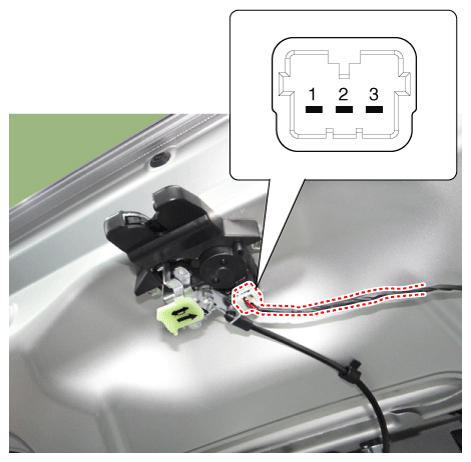

Fig 1: Trunk Lock Module Actuator Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Fig 2: Trunk Lock Module Actuator Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Trunk Lock Module Actuator Terminals Description Chart

Courtesy of KIA MOTORS AMERICA, INC.
