Rail Pressure Sensor (RPS)
Type: Piezo-electricity type
Specification

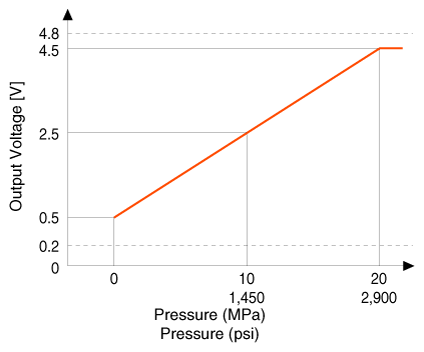

Fig 1: RPS Output Voltage Graph
Courtesy of KIA MOTORS AMERICA, INC.
