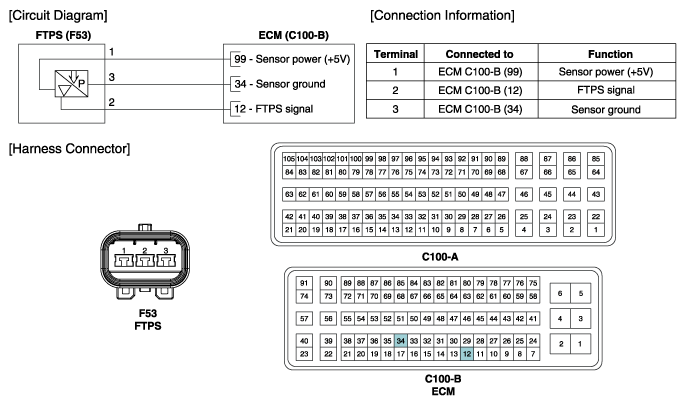

Home >> Kia >> 2018 >> Optima Hybrid EX, 2.0L Eng VIN C >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Fuel Tank Pressure Sensor (FTPS) >> Schematic Diagrams >> Circuit Diagram
