Alternator Fuse

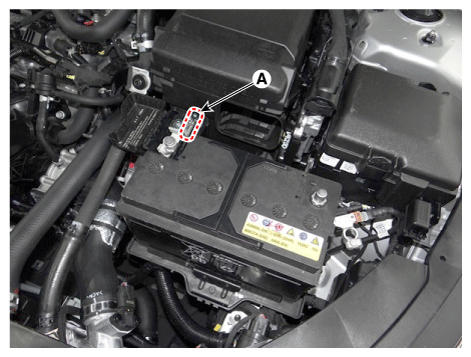

Fig 1: Locating Alternator Fuse

Courtesy of KIA MOTORS AMERICA, INC.

Check the alternator fuse (A) for continuity.

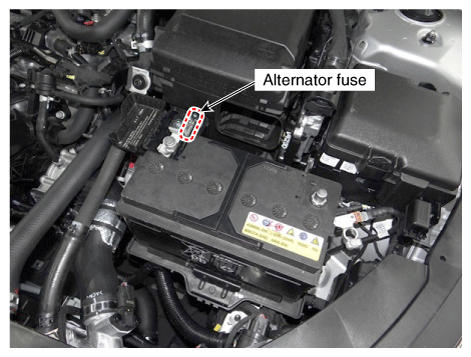

Fig 2: Locating Alternator Fuse
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Checking Alternator Fuse For Continuity
Courtesy of KIA MOTORS AMERICA, INC.
Measure the voltage as shown in the image below.
Standard value: Approximately 0 V

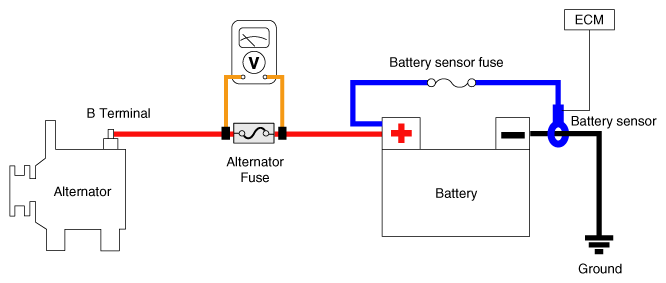

Fig 4: Measuring Alternator Fuse Voltage
Courtesy of KIA MOTORS AMERICA, INC.
If the alternator fuse is blown, replace it as in the procedure below:
1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2. Remove the battery positive (+) cable mounting nuts (A).
3. Replace the nominal alternator fuse or battery cable.

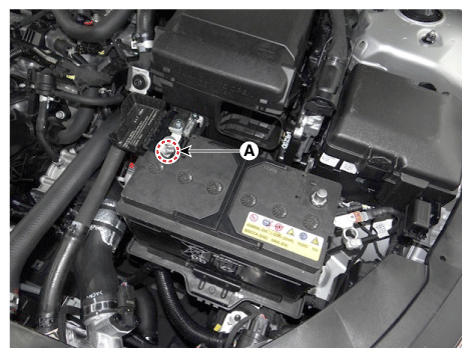

  Fig 5: Removing Battery Positive (+) Cable Mounting Nuts
  Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.
