Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.

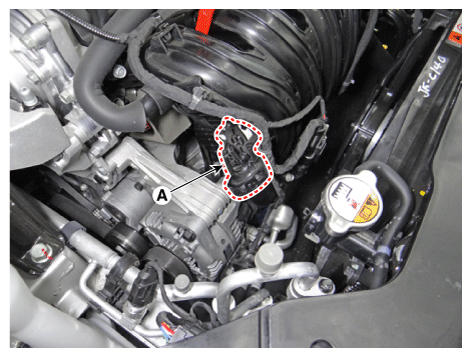

Remove the VIS (Variable intake system) actuator (A).

Fig 1: Removing VIS (Variable Intake System) Actuator
Courtesy of KIA MOTORS AMERICA, INC.

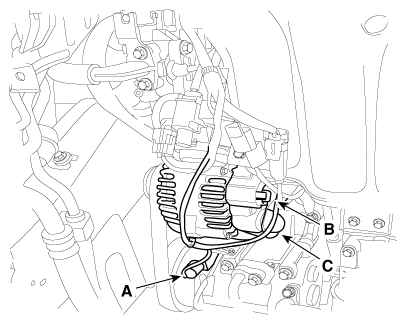

Disconnect the A/C compressor switch connector (A) the alternator connector (B), and the cable from alternator "B" terminal (C).
Alternator "B" terminal tightening nut:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

Fig 2: Disconnecting A/C Compressor Switch Connector And Alternator Connector
Courtesy of KIA MOTORS AMERICA, INC.

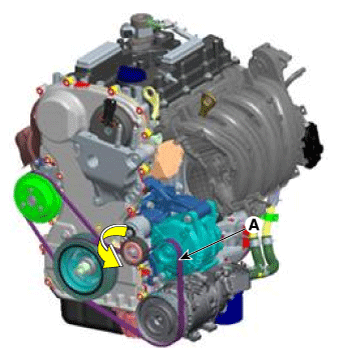

Remove the drive belt (A) after turning the drive belt tensioner (B) counterclockwise.

Fig 3: Turning Drive Belt Tensioner Counterclockwise
Courtesy of KIA MOTORS AMERICA, INC.

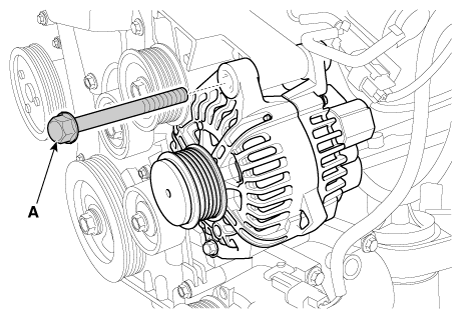

Remove the alternator mounting upper bolt (A).
Alternator mounting upper bolt :

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Fig 4: Removing Alternator Mounting Upper Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

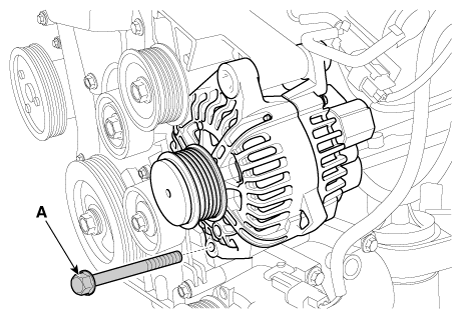

Remove the alternator mounting lower bolt (A).
Alternator mounting lower bolt :

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Fig 5: Removing Alternator Mounting Lower Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator.
