Components And Components Location: Components

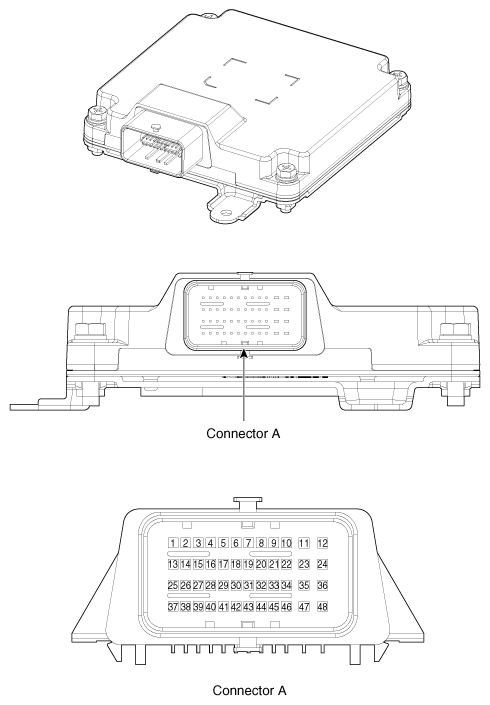

Connector Pin Information
| No. | Description |
|---|---|
| 1 | Front camera - video ground |
| 2 | Right side camera - video ground |
| 3 | Rear camera - video ground |
| 4 | Left side camera - video ground |
| 5 | - |
| 6 | SVM video output (C) |
| 7 | SVM video output (Y) |
| 8 | SVM switch indicator output |
| 9 | Left side camera - ground |
| 10 | Left side camera - power |
| 11 | C-CAN (Low) |
| 12 | C-CAN (High) |
| 13 | Front camera - video input |
| 14 | Right side camera - video input |
| 15 | Rear camera - video input |
| 16 | Left side camera - video input |
| 17 | - |
| 18 | SVM video ground (C) |
| 19 | SVM video ground (Y) |
| 20 | SVM switch signal |
| 21 | Right side camera - ground |
| 22 | Right side camera - power |
| 23 | SVM ground] |
| 24 | IGN2 |
| 25 | Front camera - video shield |
| 26 | Right side camera - video shield |
| 27 | Rear camera - video shield |
| 28 | Left side camera - video shield |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | - |
| 33 | Rear camera - ground |
| 34 | Rear camera - power |
| 35 | - |
| 36 | - |
| 37 | - |
| 38 | - |
| 39 | - |
| 40 | - |
| 41 | - |
| 42 | - |
| 43 | - |
| 44 | - |
| 45 | Front camera - ground |
| 46 | Front camera - power |
| 47 | SVM ground |
| 48 | ACC |
