Signal Waveform & Data

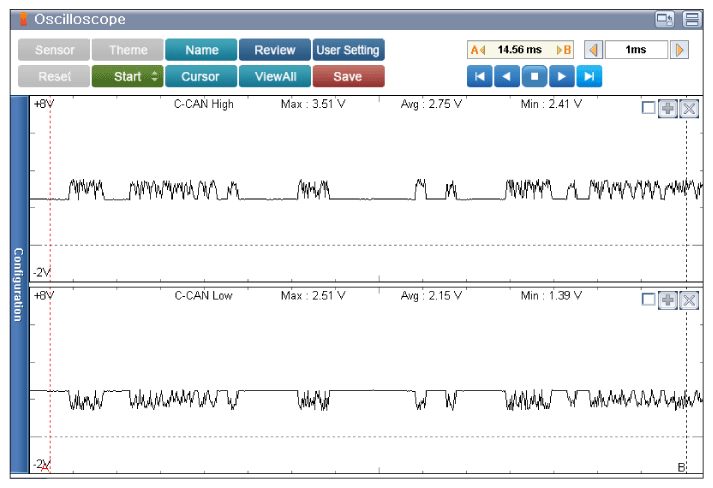

Fig 1: Screen Display - C-CAN Normal Waveform
G12134173Courtesy of KIA MOTORS AMERICA, INC.

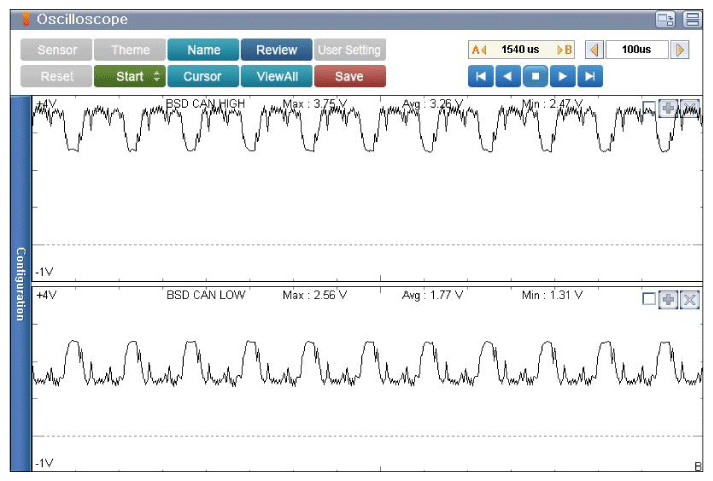

Fig 2: Screen Display - Waveform Of Disconnect BSD Sensor (LH) Connector
G12134174Courtesy of KIA MOTORS AMERICA, INC.
