Kia
>>
2018
>>
Niro Plug-In Hybrid EX
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System (PHEV)
>>
Inhibitor Switch
>>
Components & Components Location
>>
Component Location
Component Location

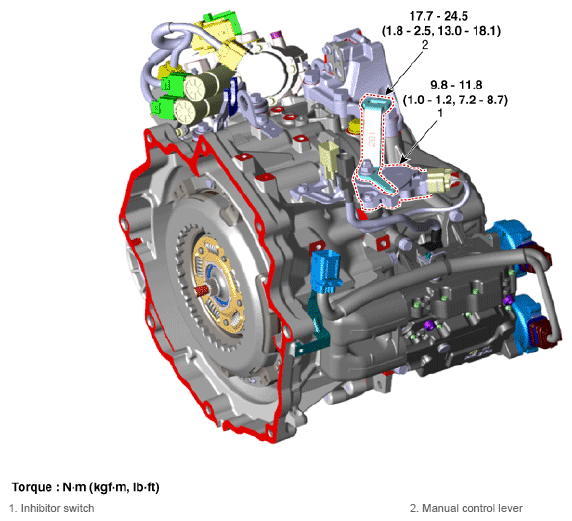

Fig 1: Inhibitor Switch Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
