Trunk Antenna

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal
  2. Remove the rear transverse trim.

    (Refer to Body - "TRUNK TRIM ")

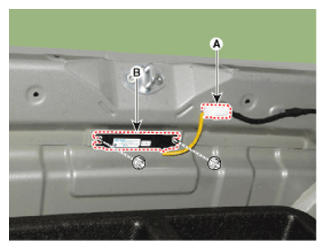

  3. Remove the trunk antenna (B) after disconnect the connector (A) and loosening the mounting nuts.
G12730138Courtesy of HYUNDAI MOTOR AMERICA
