Component Inspection

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Fig 1

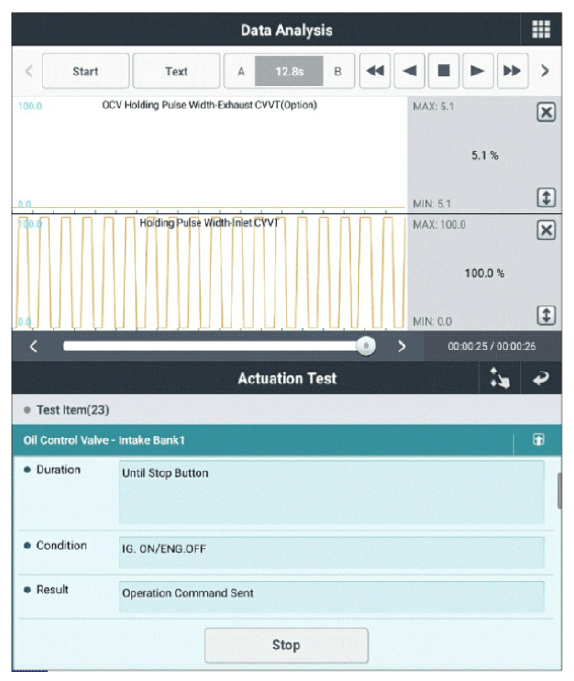

Fig 1: Screen Display - CVVT Holding Purse Current Data When Performing Oil Control Valve - Intake Bank 1 In Actuation Test With KDS

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

If no problems were found with the circuits or connectors, replace the OCV - In and go to "VERIFICATION OF REPAIR " procedure.

CVVT OIL CONTROL VALVE COIL RESISTANCE INSPECTION SPECIFICATION

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the component.	Oil control valve (intake) component side	1 (control)	Oil control valve (intake) component side	2 (power)	5.8 - 6.8Ω (20° C/68°F)

Good

If no problems were found with the circuits or connectors, replace the CVVT assembly and go to "VERIFICATION OF REPAIR " procedure.

No Good

If no problems were found with the circuits or connectors, replace the OCV - In and go to "VERIFICATION OF REPAIR " procedure.
