Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - " REAR DOOR TRIM  ")

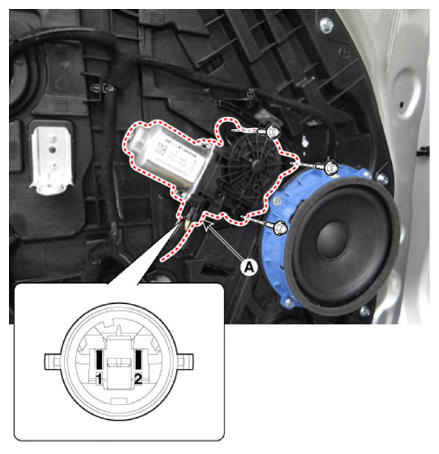

  3. Disconnect the motor connector (A) from the motor.
    G12698513Courtesy of KIA MOTORS AMERICA, INC.

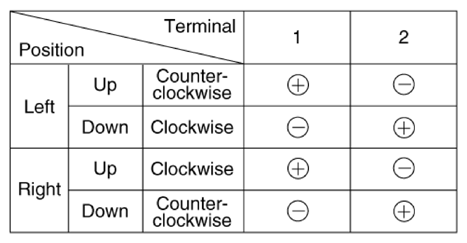

  4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.
    G12698514Courtesy of KIA MOTORS AMERICA, INC.
