Smart Key Code Saving

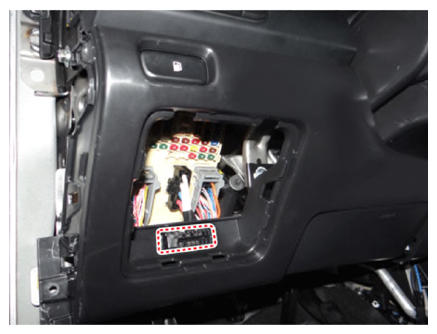

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
    G12704228Courtesy of KIA MOTORS AMERICA, INC.

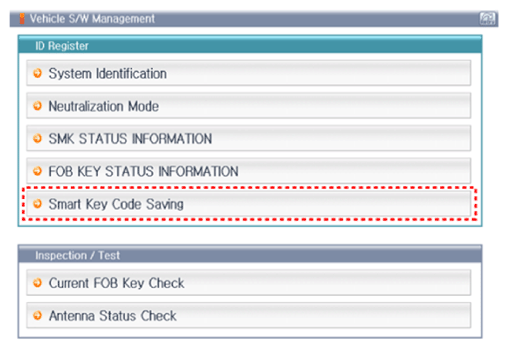

  2. Select the vehicle model and then do "Smart key code saving".
    G12704229Courtesy of KIA MOTORS AMERICA, INC.

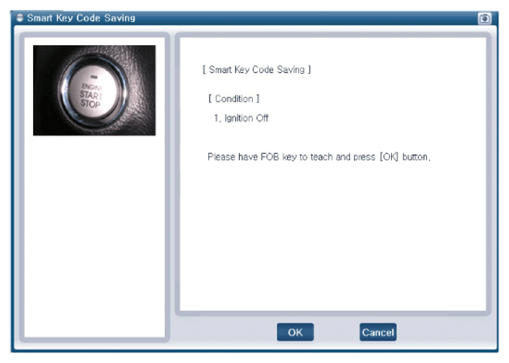

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G12704230Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

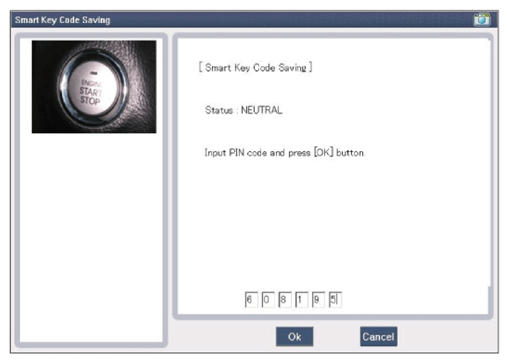

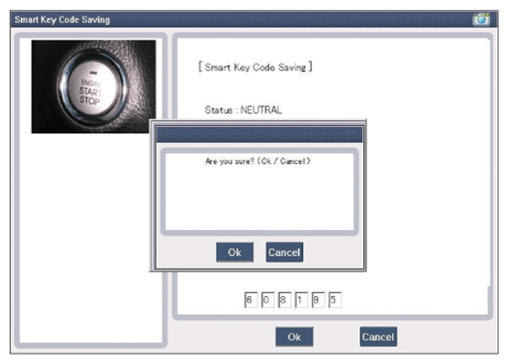

  5. Input the "Pin code" for first key teaching.
    G12704231Courtesy of KIA MOTORS AMERICA, INC.
    G12704232Courtesy of KIA MOTORS AMERICA, INC.
  6. Press the SSB with smart key within 5 sec after pressing "OK".
    G12704233Courtesy of KIA MOTORS AMERICA, INC.
  7. Confirm the message "First key teaching completed".
    G12704234Courtesy of KIA MOTORS AMERICA, INC.

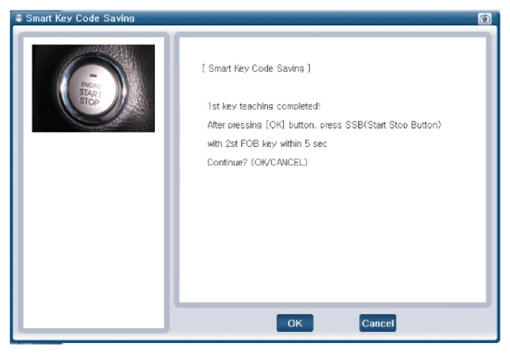

  8. Press the SSB with smart key within 5 sec after pressing "OK".
    G12704235Courtesy of KIA MOTORS AMERICA, INC.

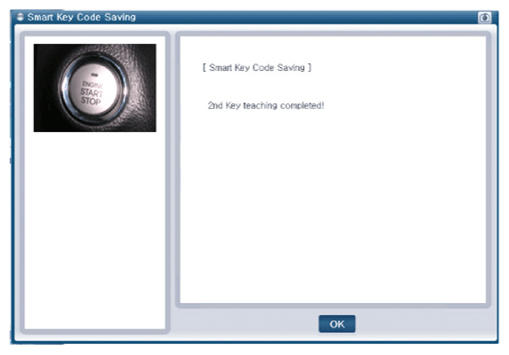

  9. Confirm the message "Second key teaching completed".
    G12704236Courtesy of KIA MOTORS AMERICA, INC.

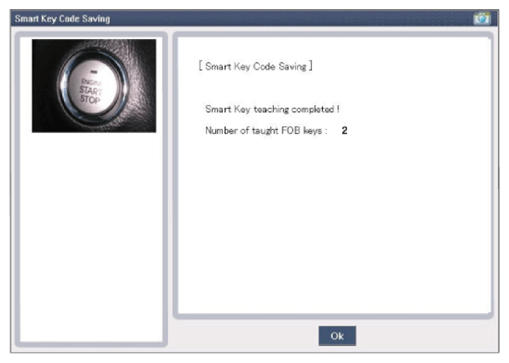

  10. Then the screen will be shown as below when key teaching process is completed.
    G12704237Courtesy of KIA MOTORS AMERICA, INC.
