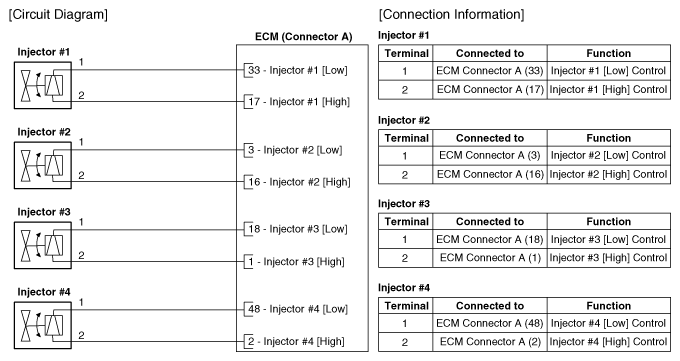

Home >> Kia >> 2018 >> Forte5 SX, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L T >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
