Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the starter cable (B) from the B terminal on the solenoid then disconnect the connector (A) from the S terminal.

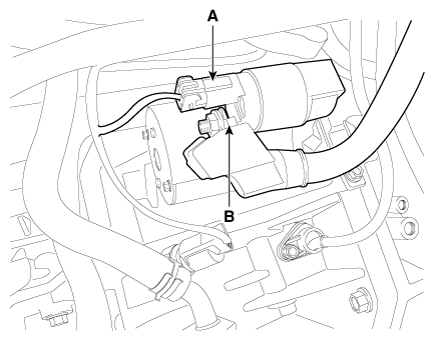

    Fig 1: Locating Starter Cable And Connector
    G12161208Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the 2 bolts holding the starter, then remove the starter (A).

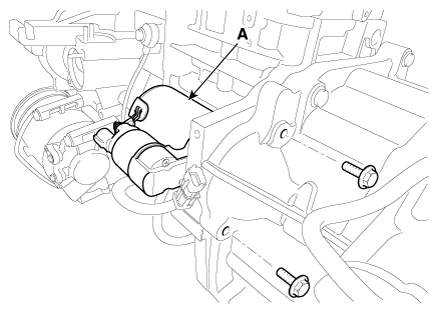

Fig 2: Locating Starter With Bolts
G12161209Courtesy of KIA MOTORS AMERICA, INC.
