Dust Cap

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Dust Cap Cover.

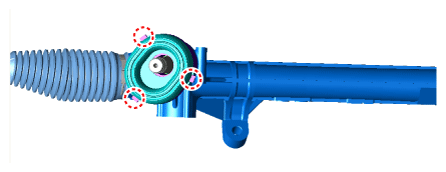

    Fig 1: Removing Dust Cap Cover
    G12329651Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the Dust Cap.
    Fig 2: Removing Dust Cap
    G12329652Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
