Component Location

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

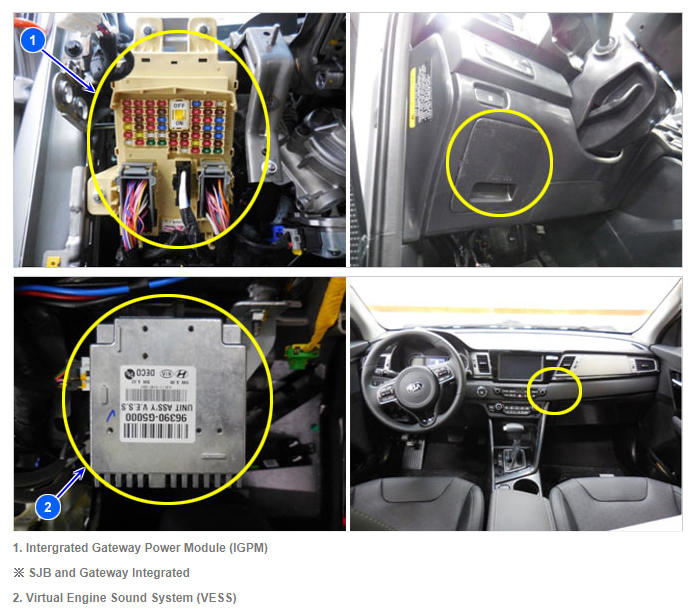

Fig 1: Locating VESS, IGPM *SJB And Gateway Integrated Components
G12328370Courtesy of KIA MOTORS AMERICA, INC.
