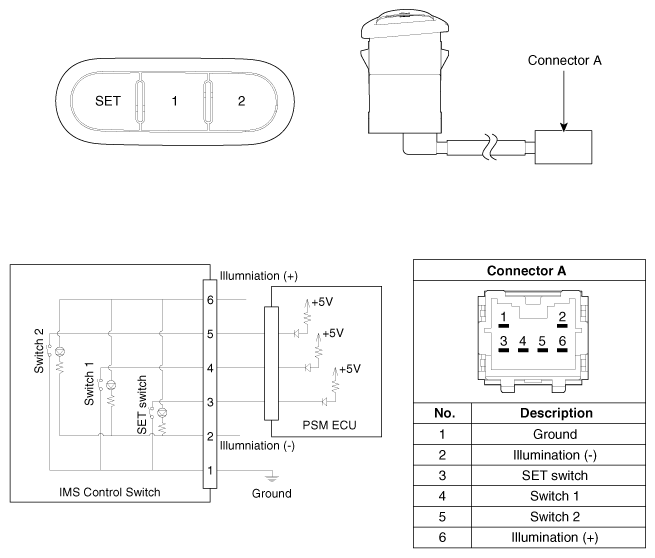

Home >> Kia >> 2018 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> IMS Power Seat Control >> Schematic Diagrams >> Circuit Diagrams
