Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Loosen the nuts (A) and then disconnect the connector (B).

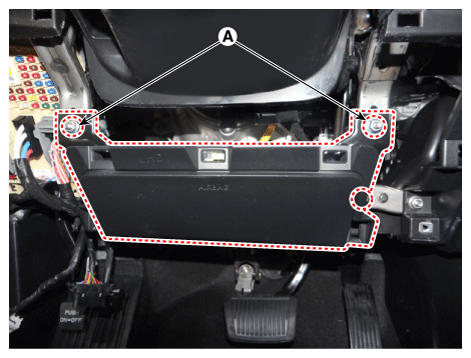

Fig 1: Loosening Crash Pad Lower Panel Nuts
G12329724Courtesy of KIA MOTORS AMERICA, INC.

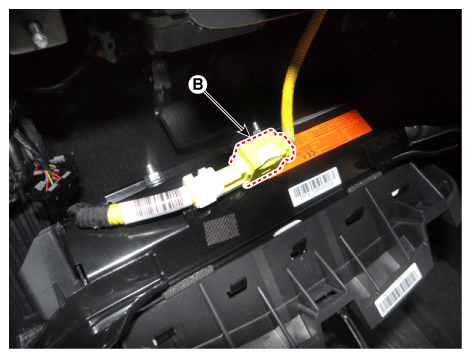

Fig 2: Disconnecting Crash Pad Lower Panel Connector
G12329725Courtesy of KIA MOTORS AMERICA, INC.

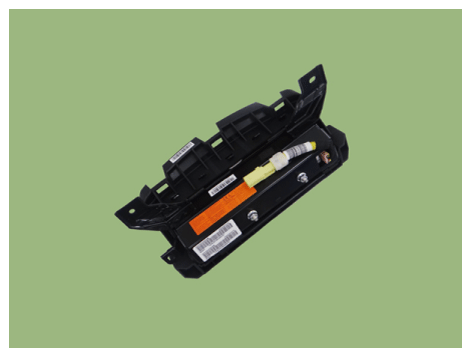

Fig 3: Crash Pad Lower Panel
G12329726Courtesy of KIA MOTORS AMERICA, INC.
